This is the prototype web page, which I think will work in very minimal browsers please let me know if it works on yours? Thanks!
Type in some data, and hit send. Watch der blinkenlights. Change delay to 10 and send. Change delay to 1 and send. Might be fast enough.
Updated versions of this code are also available

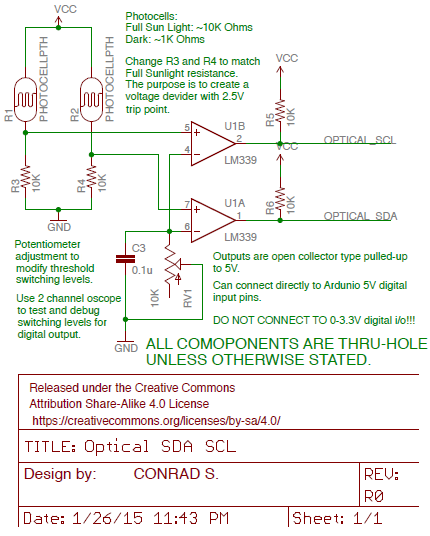

The following circuit was developed and tested by Conrad Salinas (THANK YOU!) at delays down to 5:
Bill Of Materials
|R1||PHOTOCELLPTH||PHOTOCELLPTH||PHOTOCELL||CdS photoresistor. This is a low cost way to detect light levels. Resistance decreases with more incoming light. Mfgr Part: GL5528. SparkFun SKU: SEN-09088 (check eBay for better price)|
|U1||LM339||LM339||TSSOP-14||IC, Quad Comparator. Based on information from the SLCS006N datasheet from TI (www.ti.com).Digikey:296-6607-1-ND LM339PWR|

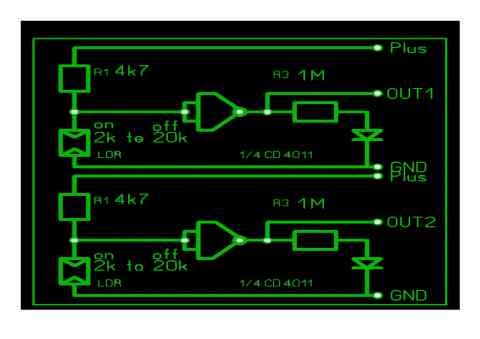

A simpler circuit, which does not auto-balance the light, but seems to work quit well, was developed by Juergen G Pintaske (THANK YOU!)
Robots need brains. For hobby and edu, it's nice if the brains are cheap. But also powerful, with all sorts of sensors. What if you could have both? Use a cheap arduino for low level / high danger functions like motor control and if it frys just replace it.
Use a smart phone for high level, sensors, etc.. E.g. put the SmartPhone on top of the robot, and let it control the Arduino, using IMU, Compass, GPS, camera, etc... But... we can't risk damaging the SmartPhone. So we really don't want to electrically connect it. Some have used headphone jacks, USB OTG, but those have problems. Limited data transfer in one direction only, and OTG pulls power from the phone so it runs it flat quickly. And, you might fry your phone.
We could use WiFI, e.g. a robot based on the ESP or other WiFi enabled chips (they are cheap these days) but then we have another problem: The phone won't let you access the sensors in the phone if the web page is served via http. It needs secure access and that is difficult. Also, then you can't talk to the phone, because it's talking to the esp (if you use station mode) and figuring out IP addresses is a pain if you connect esp to home network. But being able to use a web page is nice because no app to install. The SDMG Bot does this.
But how about this: Use optical I2C from the phone screen to a pair of light sensors in the robot, which sends motor commands to the Arduino. It's one way, limited speed (like headphones) but it's isolated. The phone can hit a web page like a free one from github or google app engine, and the app engine can even allow world wide remote control from your PC or other phone. See Also:
