Stepper Motor Hardware Interfacing

Stepper Motors

• Stepper Motor Drivers: THB6064AH, Linistepper, (BOB)
• Estimating needed system power capacity and supply
• Standard NEMA Sizes
• Determining Wiring
• Connection Options (bipolar vs unipolar, etc...) and Control Signals
• Heat
• Torque: Measuring and Torque Units Conversions
• Inductance
• Good Stepper Motors and where to find them
• Microstepping, Decay, @Motion Control
• Slaving two motors on one axis

Most people will use stepper motors make a complete motion system.

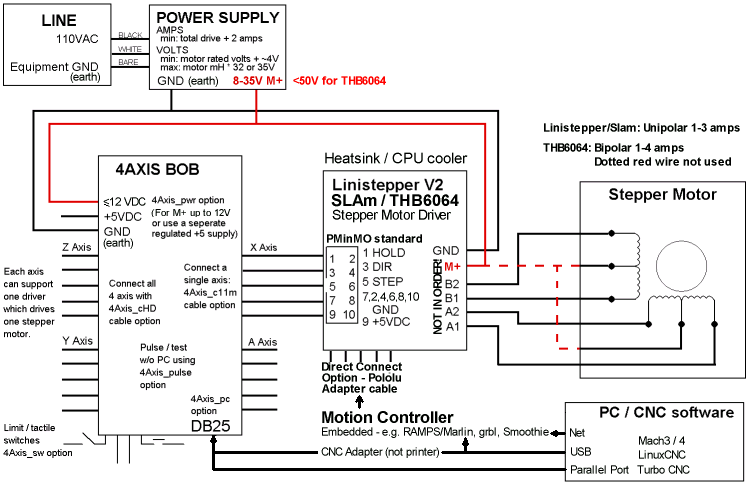

Click block diagram for larger version.

A stepper motor is a kind of electric motor with an internal rotor containing permanent magnets and a set of electro-magnet coils around the rotor which are switched electronically. Stepper motors "cog" to a limited number of positions, but with a microstepping controller, which partially activate adjacent coils so that the rotor rests between positions, stepper motors can rotate more smoothly.

Advantages: Stepper motors will try to lock to the position of the coil that is being driven by the controller so the position of the motor can be known without any actual position sensing. Although it is possible for the motor to be turned out of phase with the coil excitation, which is know as skipping or missing steps, in most cases the reduced cost of the system is justified. Also, stepper motors are "brushless" unlike most other motors and so generate less EMI or Noise.

Disadvantages include lower power efficiency, higher cost per unit, and the need for a more complex drive circuit aka driver. Also a much lower top speed. For example, a standard Lin Engineering brand 5718X-15P^ motor at 24 volts, 4.2 amps = 100 watts drive, will actually produce abount 45 watts of output power; 40 oz-in at 1500 RPM. And it will cost around $60 if you find a good deal. Just for comparison, an AmpFlow M27-150 DC motor^ at 24 volts, 5.3 amps = 128 watts will produce 100 watts of power. So 70% efficiency (79% at ~70W). And cost about $35. And a 200 watt DC motor H bridge will cost about $10. But then you need a position encoder, microcontroller, and a PID loop, which you must tune. And the brushes in the motor will burn out in a few thousand hours.

Control Signals: The stepper motor controller typically accepts two inputs, Step and Direction, from an external source, which is the Motion Controller. If the motion controller is a PC, then those signals can be transferred to the drivers via a Parallel Port connected BOB: "Break Out Board" (or cable) in real time or they can be generated via a Serial, USB, or Ethernet connected Embedded Motion Controller. One common standard for a cable/connector to carry these singals is the PMinMO standard.

The Direction signal set the direction of rotation and each pulse on the Step signal causes the driver to move the motor one step in that direction. The controller translates these signals into different patterns of current flow in the coils, which result in the moment of the motor. The Step signal may be called: Clock, CLK+, Pluse, etc.. and Direction may be called DIR, CCW+, CW/CCW, but they are still just carrying Step and Direction information.

Size: Type 23, NEMA 23 or any other like that refers to the mounting arrangement only (mounting hole pattern and size, diameter of shaft) Also: Table of NEMA sizes showing shaft, mounting hole positions, distance, etc...

Application: Stepper motors excel at driving loads needing up to about 100 Watts of power to move at less than a few hundred RPM with accuracy of 1/200th of a revolution. Lighter loads can be driven faster or with more accuracy. Stepper motors are commonly used to convert milling machines to CNC control.

Also:

• Wiring for information on the different types of wiring inside a stepper motor and finding which wire is which.
• Connection Options explores the different ways a stepper motor can be connected to a stepper driver and the advantages and disadvantages of each. +
• Estimating Stepper Motor Size, Amperage, Voltage, Speed for a given application
• Torque: The torque required to move a load is dynamic or detent torque. Don't be mislead by a rating of holding torque. A typical stepper motor / drive system will lose almost half of its holding torque when moving at low speeds and will have no torque at all at some higher speed. Look for the torque curve.
  • Units Conversion
  • Measuring
• Floppy Motor Steppers
• Decoding Quadrature Encoders with a PIC
• Ubicom SX stepper motor controls
• PIC Microcontroller stepper motor controls
• Using Stepper Motors as Encoders
• CNC
• Automated Gardening / Wirebots
• Coming soon: QuickStep

News

See also:

• http://www.instructables.com/id/3D-Printed-Stepper-Motor/?ALLSTEPS A 3D printed stepper motor that does a great job of showing how they work.+
• http://www.daycounter.com/Calculators/Stepper-Motor-Calculator.phtml Calculates max stepper speed from Steps per revolution (S), Inductance (L), Voltage (V) and max Current (I) as RPM = [V/(L*2*I)]/S+
• http://www.stepperworld.com/Tutorials/pgUnipolarTutorial.htm Basic tutorial on Stepper Motors and control+
• http://www.cnczone.com/forums/showthread.php?t=52090 Geckodrive FAQ: General, Steppers, and Servo Questions Answered
• http://www.codeproject.com/vbscript/Stepper_Motor_Control.asp Stepper Motor Control through Parallel Port from a Visual Basic script in MS Excel
• http://linuxgazette.net/122/sreejith.html Liniux stepper motor tutorial
• /techref/member/FL-gmail-A53/index.htm 2 stepper motor driver+
• TakeThisOuTaaron.groups@spam@ at gmail.com refers to

• http://www.bright.net/~agarb/STMD/STMD.html For those that are interested, I've been working on an open-source bipolar, microstepping chopper stepper drive. Schmatics are available and it is my intention to also make the source code availabe once I get it cleaned up.

• http://www.cs.uiowa.edu/~jones/step Nice tutorial on steppers
• http://www.doc.ic.ac.uk/~ih/doc/stepper/ Nice tutorial on steppers
• http://www.beowulf.demon.co.uk/serial-stepper.html
• http://www.allegromicro.com Has some nice stepper motor controllers with logic, protection, drivers, etc... all built in.
• http://www.njr.co.jp/e05/ee.htm excellent app notes with full theory but also practical applications.
• http://web.archive.org/web/19990218185922/http://www.sig-positec.co.uk/bmotors.htm info on different types, etc... pictures missing.
• http://www.galilmc.com/support/motorsizer/index.html You put in system type, load mass, etc... and it tells you want motor and drivers to use. Does require registration.
• http://www.nookindustries.com/acme/acmeglossary.cfm Everything you want to know about leadscrews
• http://www.microchip.com/Microchip.webcontent.provider/Video.aspx?id=en548368 "Stepper Motor Control with dsPIC DSCs." Really good "Webinar" video explaining the issues encountered in stepper motor drive, especially bi-polar drivers. Despite the title, most of the information is /not/ specific to dsPICs.
• http://blog.cncorbust.com/2010/10/stepper-motor-control-theory.html Interesting discussion and links to articles about multi-dimentional motion control with stepper motors.

See:

• /techref/piclist/cump/hardware.htm CUMP hardware+
