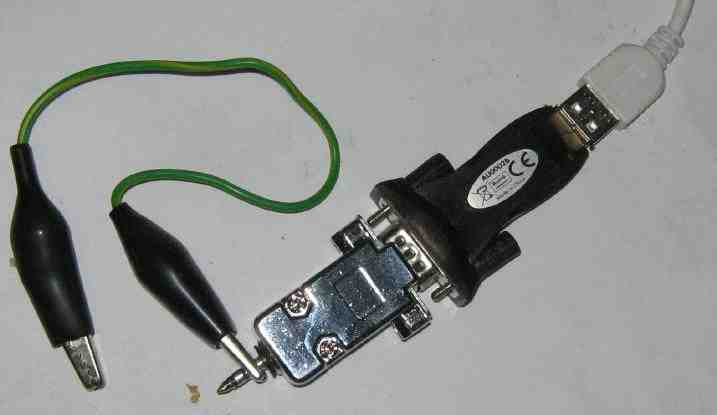

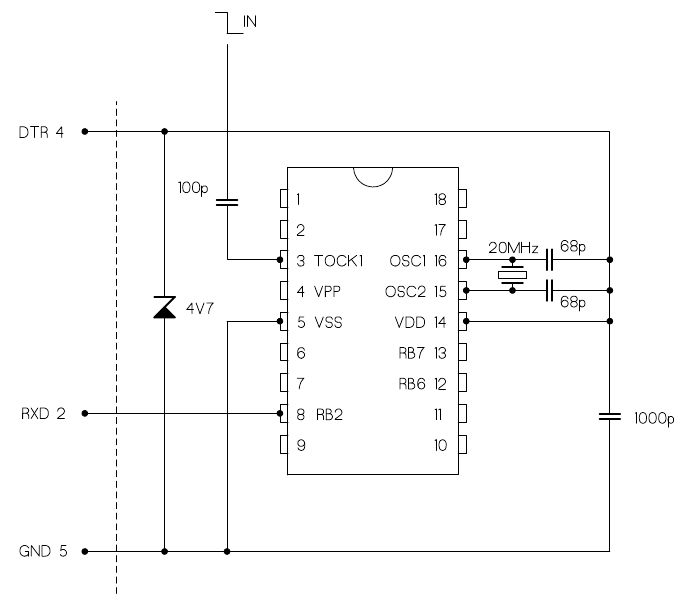

PIC 16F628 Frequency Counter with RS232 output in a DB9 backshell

by Jan Panteltje

From: http://panteltje.com/panteltje/pic/freq_pic/



Very nice "Dead Bug" Construction!


;**************************************************************************
; FILE:      counter.asm                                                  *
; CONTENTS:  Simple low-cost digital frequency meter using a PIC 16F628   *
; AUTHOR:    Wolfgang Buescher, DL4YHF                                    *
;            (based on a work by James Hutchby, MadLab, 1996)             *
; REVISIONS: (latest entry first)                                         *
; 2009-08-27 - Added RS232 output option 1200 Bd by Jan Panteltje         *
; 2006-05-31 - Added the 'power-save' option which temporarily puts the   *
;              PIC to sleep (with only the watchdog-oscillator running)   *
; 2006-05-15 - New entry in the preconfigured frequency table for 4-MHz   *
;              IF filters (like "Miss Mosquita" [Moskita] by DK1HE)       *
; 2005-08-24 - Cured a bug in the COMMON ANODE decimal point setting .    *
;              (the "^0xFF" for the AND-mask was missing in macro 'conv') *
; 2005-03-21 - Added a few conditionals to use the same sourcecode        *
;              to drive a COMMON ANODE display ( DISPLAY_VARIANT_3 )      *
; 2004-03-14 - Fixed a range-switching bug around 8 MHz .                 *
;            - Support TWO different display variants now,                *
;              optimized for different board layouts, and different clock *
;              frequencies (4 MHz for variant 1,  20 MHz for variant 2).  *
; 2004-03-05 - Added the feature to add or subtract a frequency offset .  *
; 2004-02-18 - Migration to a PIC16F628 with 4 MHz crystal (el Cheapo)    *
;            - Changed the LED patterns '6' and '9' because they looked   *
;              like 'b' and 'q' in the old counter version .              *
;            - Added the auto-ranging feature                             *
;            - Stepped from 24-bit to 32-bit integer arithmetic, to be    *
;              able to count 50 MHz with 1-second gate time,              *
;              or (at least) adjust ANY result for the ANY prescaler      *
;              division ratio, which may give pretty large numbers .      *
;            - A PIC16F628 worked up to 63 MHz with this firmware .       *
;**************************************************************************

 list P=16F648a
; #include <p16F628.inc>        ; processor specific definitions
 #include <p16f648a.inc>        ; processor specific definitions


; Uncomment this if you want RS232 output
#define RS232_OUT

; Uncomment the next line if you want pin 8 of the PIC to directly drive a RS232 line (without MAX232 or such).
#define NON_INVERTING_RS232_OUT

; BAUD_DIVIDER set to 1 for 9600 Bd, 2 for 4800 Bd, 4 for 2400 Bd, 8 for 1200 Bd, 16 for 600 Bd, 32 for 300 Bd, 64 for 150 Bd, and 128 for 75 Bd.
; Note: for 9600 Bd set BIT_DELAY to 27, or basically a bit lower then for the other baudrates, due to more relative time spend in other instructions.
#define BAUD_DIVIDER	d'8'		; 1200 Baud

; set baudrate, for small deviations of the internal oscillator this may need to be adapted.
#define BIT_DELAY		d'165'		; approx 165 for 1200 Bd	with 20 MHz clock

; for software RS232 out, NOT using UART
#define RS232_PORT		PORTB
#define RS232_BIT		D'2'		; RB2, pin 8


; print options, all field active looks like:
; 00000050  50 Hz  0.050 kHz
; 19999968  19,999,968 Hz  19.999 MHz
; Uncomment this if you want the first field printed.
#define RS232_PRINT_FIELD_1
; Uncomment this if you want the secind field printed.
#define RS232_PRINT_FIELD_2
; Uncomment this if you want the third field printed.
;#define RS232_PRINT_FIELD_3
; Note: The first field is for parsing by user space programs. it is recommanded to always leave the field active.


; for unit printing
#define	KILOHERTZ_FLAG				1
#define NO_INPUT_FLAG				2
#define ZERO_SUPPRESSION_FLAG		4



#define DISPLAY_VARIANT_2


 #define DEBUG 0         ; DEBUG=1 for simulation, DEBUG=0 for real hardware



; Selection of LED display control bits... since 2005, three different variants.
; Select ONE OF THESE in MPLAB under "Project".."Build Options".."Macro Definitions"!
;  DISP_VARIANT=1  :   first prototype, PIC on left side of display
;  DISP_VARIANT=2  :   second prototype, separated PIC and display board
;  DISP_VARIANT=3  :   similar as (2), but for COMMON CATHODE display
; Unfortunately it seems impossible to assign a NUMERIC VALUE to a macro
;   in MPLAB (not in MPASM!) ....
#ifdef DISPLAY_VARIANT_1
  #define DISP_VARIANT 1    ; very first (old) prototype by DL4YHF
  #define COMMON_ANODE   0
  #define COMMON_CATHODE 1
#else
#ifdef DISPLAY_VARIANT_2
  #define DISP_VARIANT 2    ; 5 digits, new layout, COMMON CATHODE
  #define COMMON_ANODE   0
  #define COMMON_CATHODE 1
#else
#ifdef DISPLAY_VARIANT_3    ; added 2005-03-21 :
  #define DISP_VARIANT 3    ; similar as (2), but for COMMON ANODE display
  #define COMMON_ANODE   1
  #define COMMON_CATHODE 0
#else
  #define DISP_VARIANT 4
  #define COMMON_ANODE   0
  #define COMMON_CATHODE 1
;  "Error, Must define DISPLAY_VARIANT_1, .._2, or .._3 under project options"
  ; With MPLAB: Project..Build Options..Project..MPASM..Macro Definitions..Add
#endif
#endif
#endif



;**************************************************************************
;                                                                         *
; Summary                                                                 *
;                                                                         *
;**************************************************************************

; The software functions as a frequency meter with an input signal
; range of 1 Hz to ~ 50 MHz and with an accuracy of +/- 1Hz
; if the oscillator crystal is properly trimmed .

; Signal pulses are counted over a fixed time interval of 1/4 second to
; 1 second (gate time). High frequency pulses are counted over 1/4 s
; to make the meter more responsive with no loss of displayed accuracy.

; Pulses are counted using Timer 0 of the PIC,
; which is set to increment on rising edges on the TMR0 pin. The 8-bit
; hardware register is extended by software into a 32-bit pulse counter.
; If timer 0 rolls over (msb 1 -> 0) between successive polls then the
; high two bytes of the pulse counter are incremented.

; Timer 0 is unable to count more than one pulse per instruction cycle
; (per 4 clock cycles) so the prescaler is used at frequencies above
; 1MHz (4MHz clock / 4) and also to ensure that pulses are not lost
; between polls of timer 0 (which would happen if more than 128 pulses were
; received). Fortunately the prescaler is an asynchronous counter
; which works up to a few ten MHz (sometimes as far as 60 MHz) .

; Timing is based on a software loop of known execution period . The loop
; time is 50 or 20 us which gives integer counts to time 1 s  and 1/4 s .
; During this timing loop, the multiplexed LED display is updated .

; The frequency in binary is converted to decimal using a powers-of-ten
; lookup table. The binary powers of ten are repeatedly subtracted from
; the frequency to determine the individual decimal digits. The decimal
; digits are stored at the 8 bytes at 'digits'. Leading zeroes are then
; suppressed and the 4 (or 5) significant digits are converted to LED data
; for the 7-segment displays using a lookup table.

; The signal frequency is displayed on four (or five) 7-segment displays.
; The displays are multiplexed which means that only one display is enabled
; at any one time. The variable 'disp_index' contains the index of the currently
; enabled display. Each display is enabled in turn at a sufficient frequency
; that no flicker is discernable. A prescaler ('disp_timer') is used
; to set the multiplexing frequency to a few hundred Hz.

; The display shows the signal frequency in KHz or MHz, according to the
; following table:

; --------------------------
; | Frequency | Display    |
; --------------------------
; | < 1Hz     |       0    |
; | 1Hz       |   0.001[0] |  Note: kHz-dot is flashing (blinking)
; | 10Hz      |   0.010[0] |
; | 100Hz     |   0.100[0] |
; | 1.000KHz  |   1.000[0] |
; | 10.00KHz  |   10.00[0] |
; | 100.0KHz  |   100.0[0] |
; | 1.000MHz  |   1.000[0] |  Note: MHz-dot is steady (not blinking)
; | 10.00MHz  |   10.00[0] |
; --------------------------

; If there is no signal at all, a single zero is displayed in the 4th(!) digit.
; Overflows are not displayed because they cannot be detected !


;**************************************************************************
;                                                                         *
; PIC config definitions                                                  *
;                                                                         *
;**************************************************************************


; '__CONFIG' directive is used to embed configuration data within .asm file.
; The lables following the directive are located in the respective .inc file.
; See respective data sheet for additional information on configuration word.
; Since 2006-05-28, the watchdog must be ENABLE in the config word
;       because of its wakeup-from-sleep function (see 'Sleep100ms') .
; EX(16F84:)     __CONFIG   _CP_OFF &amp _WDT_ON & _PWRTE_ON &amp _RC_OSC
#if (DISP_VARIANT==1)  ; display variant 1 : clocked with 4 MHz (low power, "XT" )
   __CONFIG   _CP_OFF & _WDT_ON & _PWRTE_ON & _XT_OSC & _LVP_OFF & _BODEN_OFF & _MCLRE_OFF
#else                  ; display variants 2+3 : clocked with 20 MHz (needs "HS" oscillator)
   __CONFIG   _CP_OFF & _WDT_ON & _PWRTE_ON & _HS_OSC & _LVP_OFF & _BODEN_OFF & _MCLRE_OFF
#endif



; '__IDLOCS' directive may be used to set the 4 * 4(?!?) ID Location Bits .
; These shall be placed in the HEX file at addresses 0x2000...0x2003 .
   __IDLOCS H'1234'


; (definitions of "file" registers removed.  They are defined in a header file!)



;**************************************************************************
;                                                                         *
; Port assignments                                                        *
;                                                                         *
;**************************************************************************

PORT_A_IO      equ  b'0000'        ; port A I/O mode (all output)
PORT_B_IO      equ  b'00000000'    ; port B I/O mode (all output)

LEDS_PORT      equ  PORTB          ; 7-segment LEDs port

ENABLE_PORT    equ  PORTA          ; display enable port
  ; Bitmasks to control the digit outputs have been moved to enable_table .
  ; YHF: Note that 'display #0' is the MOST SIGNIFICANT digit !


#define IOP_PROG_MODE  PORTA,5   ; digital input signal, LOW enters programming mode




;**************************************************************************
;                                                                         *
; Constants and timings                                                   *
;                                                                         *
;**************************************************************************

; processor clock frequency in Hz (4MHz)
#if (DISP_VARIANT==1)  ; display variant 1 : clocked with 4 MHz (low power consumption)
CLOCK     equ  .4000000
#else                  ; display variants 2+3 : clocked with 20 MHz (higher resolution)
CLOCK     equ  .20000000
#endif

; microseconds per timing loop
#if (DISP_VARIANT==1)  ; display variant 1 : clocked with 4 MHz
  ; 20 microseconds is impossible with 4-MHz-Crystal, so use 50 us instead !
  ; Make sure all gate times can be divided by this interval without remainder :
  ; 1   second / 50 us = 20000  (ok)
  ; 1/4 second / 50 us =  5000  (ok)
  ; 1/8 second / 50 us =  2500  (ok)
TIME      equ  .50
#else                  ; display variants 2+3 : clocked with 20 MHz
  ; 20 microseconds is impossible with 4-MHz-Crystal, so use 50 us instead !
  ; Make sure all gate times can be divided by this interval without remainder :
  ; 1   second / 20 us = 50000  (ok)
  ; 1/4 second / 20 us = 12500  (ok)
  ; 1/8 second / 50 us =  6250  (ok)
TIME      equ  .20
#endif ; variant 1 or 2+3 ?


; Clock cycles per timing loop.  See subroutine count_pulses .
;  Usually CYCLES=200 (for 4 MHz crystal,  50 usec - loop)
;              or 400 (for 20 MHz crystal, 20 usec - loop)
CYCLES    equ  TIME*CLOCK/.1000000

GATE_TIME_LOOPS equ  CLOCK/CYCLES       ; number of gate-time loops for ONE SECOND gate time

LAMPTEST_LOOPS  equ  CLOCK/(.2*CYCLES)  ; number of loops for a 0.5 SECOND lamp test after power-on

PROGMODE_LOOPS  equ  CLOCK/(.10*CYCLES) ; number of delay loops for display in PROGRAMMING MODE (0.1 sec)

; Configuration of power-saving mode :
#if( DEBUG )
PSAVE_DELAY_TIME equ .10  ; number of 0.25-sec-intervals before turning off (shorter for debugging)
#else
PSAVE_DELAY_TIME equ .60  ; number of 0.25-sec-intervals before turning off (some dozen seconds)
#endif
PSAVE_FLASHUP_TIME equ .14 ; number of 0.7(!)-second-intervals between two flashes in power-saving mode
PSAVE_MAX_DIFF   equ .10  ; maximum frequency difference (range-dependent, see below)
     ; Unit: N times "frequency-resolution", see frequency-range table .
     ; Example: PSAVE_MAX_DIFF=10 means 10*4Hz in Range 1 (1..3.4 MHz) .


; Menu Indices ... must match the jump table PMDisplay + PMExecute !
MI_QUIT   equ  0     ; exit from menu
MI_PSAVE  equ  1     ; turn "power save"-option on and off
MI_ADD    equ  2     ; save frequency offset to ADD it from now on
MI_SUB    equ  3     ; save frequency offset to SUBTRACT it from now on
MI_ZERO   equ  4     ; set the frequency offset to ZERO and leave menu
MI_STD_IF equ  5     ; jump into the STANDARD INTERMEDIATE FREQUENCY table..
MI_INDEX_MAX  equ 5  ; normal menu indices up to MI_INDEX_MAX .
MI_IF_1   equ  6     ; show the 1st standard IF
MI_IF_2   equ  7     ; show the 2nd standard IF
MI_IF_3   equ  8     ; show the 3rd standard IF
MI_IF_4   equ  9     ; show the 4th standard IF
MI_IF_5   equ  0x0A  ; show the 4th standard IF
MI_IF_QT  equ  0x0B  ; exit standard IF menu without changing anything
MI_IF_SUBMENU_MAX equ 0x0A



;**************************************************************************
;                                                                         *
; File register usage                                                     *
;                                                                         *
;**************************************************************************


; RAM memory (general purpose registers, unfortunately not the same for PIC16F84 & PIC16F628)
;   in PIC16F628: RAM from 0x20..0x7F   (96 bytes, 0x20.. only accessable in Bank0)
;                          0xA0..0xEF   (another 80 bytes in Bank1)
;                          0x120..0x14F (another 48 bytes in Bank2)
;   0x0F0..0x0FF, 0x170..0x17F , 0x1F0..0x1FF are mapped to 0x70..0x7F (same in all banks)
;   So use 0x70..0x7F for context saving in the PIC16F628 and forget 0x0F0.. 0xNNN !
;
;  Note on the 32-bit integer arithmetics as used in this code:
;   - They begin with MOST SIGNIFICANT BYTE in memory, but...
;   - Every byte location has its own label here, which makes debugging
;     with Microchip's simulator much easier (point the mouse on the name
;     of a variable to see what I mean !)
;

tens_index     equ  0x27      ; index into the powers-of-ten table
divi           equ  0x28      ; power of ten (32 bits)
divi_hi        equ  0x28      ; same as 'divi' : HIGH byte
divi_mh        equ  0x29      ; MEDIUM HIGH byte
divi_ml        equ  0x2A      ; MEDIUM LOW  byte
divi_lo        equ  0x2B      ; LOW byte

timer0_old     equ  0x2C      ; previous reading from timer0 register

gatecnt_hi     equ  0x2D      ; 16-bit counter (msb first)
gatecnt_lo     equ  0x2E      ; 16-bit counter (lsb last)

bTemp          equ  0x2F      ; temporary 8-bit register,
                              ; may be overwritten in ALL subroutines

freq           equ  0x30      ; frequency in binary (32 bits)....
freq_hi        equ  0x30      ; same location, begins with HIGH byte
freq_mh        equ  0x31      ; ... medium high byte
freq_ml        equ  0x32      ; ... medium low byte
freq_lo        equ  0x33      ; ... low byte

freq2          equ  0x34      ; frequency too, copied for programming mode
freq2_hi       equ  0x34      ; same location, begins with HIGH byte
freq2_mh       equ  0x35      ; ... medium high byte
freq2_ml       equ  0x36      ; ... medium low byte
freq2_lo       equ  0x37      ; ... low byte

foffs          equ  0x38      ; frequency too, copied for programming mode
foffs_hi       equ  0x38      ; same location, begins with HIGH byte
foffs_mh       equ  0x39      ; ... medium high byte
foffs_ml       equ  0x3A      ; ... medium low byte
foffs_lo       equ  0x3B      ; ... low byte


menu_index     equ  0x3C      ; menu item for programming mode
menu_timer     equ  0x3D      ; used to detect how long a key was pressed

digits         equ  0x40      ; frequency as decimal digits (8 bytes)...
digit_0        equ  0x40      ; same location as MOST SIGNIFICANT digit, 10-MHz
digit_1        equ  0x41      ; usually the 1-MHz-digit
digit_2        equ  0x42      ; usually the 100-kHz-digit
digit_3        equ  0x43      ; usually the 10-kHz-digit
digit_4        equ  0x44      ; usually the 1-kHz-digit
digit_5        equ  0x45      ; usually the 100-Hz-digit
digit_6        equ  0x46      ; usually the 10-Hz-digit
digit_7        equ  0x47      ; usually the 1-Hz-digit
digit_8        equ  0x48      ; must contain a blank character (or trailing zero)

display0       equ  0x49      ; display #0 data
display1       equ  0x4A      ; display #1 data
display2       equ  0x4B      ; display #2 data
display3       equ  0x4C      ; display #3 data
display4       equ  0x4D      ; display #4 data

disp_index     equ  0x4E      ; index of the enabled display (0 to 4 for 5-digit display)
disp_timer     equ  0x4F      ; display multiplex timer (5 bits)

adjust_shifts  equ  0x50      ; count of 'left shifts' to compensate prescaler+gate time

blinker        equ  0x51      ; prescaler for the flashing 1-kHz-dot

psave_timer    equ  0x52      ; timer for power-save mode (incremented every 0.25 seconds)
psave_freq_lo  equ  0x53      ; low-byte of frequency to detect changes for power-save mode
psave_flags    equ  0x54      ; power-saving flags with the following bits:
#define PSFLAG_ACTIVE psave_flags,0 ; clear:normal mode,  set:power-saving in action (display blanked)

options        equ  0x55      ; display options with the following flag-bits:
#define OPT_PWRSAVE options,0 ; clear:normal mode,  set:power-saving mode enabled
tx_reg			equ	0x56


bit_count		equ	0x57
baud_divider	equ	0x58
delay_counter	equ	0x59
print_flags		equ	0x5A
temp			equ	0x5B


;**************************************************************************
;                                                                         *
; Macros (1)                                                              *
;                                                                         *
;**************************************************************************


eep_dw  macro value  ; a DOUBLEWORD split into 4 bytes in the PIC's DATA EEPROM
           de  (value>>.24), (value>>.16)&0xFF, (value>>8)&0xFF, value&0xFF
        endm

;**************************************************************************
;                                                                         *
; EEPROM memory  definitions                                              *
;                                                                         *
;**************************************************************************

  ;     for PIC16F84:   0x00..0x3F were valid EEPROM locations (64 byte)
  ;     for PIC16F628:  0x00..0x7F are valid EEPROM locations (128 byte)
#define EEPROM_ADR_FREQ_OFFSET  0x00  ; EEPROM location for frequency offset
#define EEPROM_ADR_STD_IF_TABLE 0x04  ; EEPROM location for standard IF table (4*4 byte)
#define EEPROM_ADR_OPTIONS      0x20  ; EEPROM location for "options" (flags)

; This gives warnings with gpasm 'Warning [220] Address exceeds maximum range for this processor.'
; Initial contents of DATA EEPROM:
 org (0x2100+EEPROM_ADR_FREQ_OFFSET)
    eep_dw   .0        ; [00..03] initial frequency offset = ZERO

 org (0x2100+EEPROM_ADR_STD_IF_TABLE)  ;  standard IF table ...
    eep_dw   .455000   ; [04..07] frequently used in old AM radios
    eep_dw  .3999000   ; [08..0B] used in "Miss Mosquita" (DK1HE / DL QRP AG)
    eep_dw  .4194304   ; [0C..0F] used in other homebrew amateur radio receivers
    eep_dw  .4433619   ; [10..13] sometimes  used in homebrew amateur radio receivers
    eep_dw .10700000   ; [14..17] frequently used in old FM radios
                       ; [18..1F] reserved for other "preprogrammed" values

 org (0x2100+EEPROM_ADR_OPTIONS)
    de      .0         ; [20]     "options" (flags), cleared by default


;**************************************************************************
;                                                                         *
; More Macros                                                             *
;                                                                         *
;**************************************************************************


;--------------------------------------------------------------------------
; macros to implement lookup tables - these macros hide the PIC syntax
; used and make the source code more readable
;   (YHF: CAUTION - BUT THESE MACROS HIDE SOME VERY NASTY PITFALLS .
;         TABLE MUST NOT CROSS PAGE BORDER DUE TO 'ADDWF PCL, f' ! )
;--------------------------------------------------------------------------

cquad  macro value
          retlw value>>.24              ; high byte
          retlw (value>>.16)&0xFF       ; middle-high byte
          retlw (value>>8)&0xFF         ; middle-low  byte
          retlw value&0xFF              ; low byte
       endm

table  macro label              ; define lookup table

label     addwf PCL,f  ; caution: this is 'PCL' only, cannot add to the full 'PC' in a PIC !
       endm


;--------------------------------------------------------------------------
; add with carry - adds the w register and the carry flag to the file
; register reg, returns the result in <reg> with the carry flag set if overflow
;--------------------------------------------------------------------------

addcwf    macro reg

          local add1,add2

          bnc add1                      ; branch if no carry set

          addwf reg , f                 ; add byte

          incf reg , f                  ; add carry
          skpnz
          setc

          goto add2

add1      addwf reg,f                   ; add byte

add2
          endm


;--------------------------------------------------------------------------
; subtract with "no-carry" - subtracts the w register and the no-carry flag
; from the file register reg, returns the result in reg with the no carry flag
; set if underflow
;--------------------------------------------------------------------------

subncwf   macro reg

          local sub1,sub2

          bc sub1                       ; branch if carry set
          subwf reg, f                  ; subtract byte
          skpnz                         ; subtract no carry
          clrc
          decf reg , f
          goto sub2
sub1      subwf reg , f                 ; subtract byte
sub2
          endm


;--------------------------------------------------------------------------
; MACRO to perform 32-bit addition - adds the four bytes at op2 to the
; three bytes at op1 (most significant bytes first), returns the result in
; op1 with op2 unchanged and the carry flag set if overflow
;--------------------------------------------------------------------------

add32     macro op1,op2                 ; op1 := op1 + op2

          movfw op2+3                   ; add low byte        (bits 7...0)
          addwf op1+3,f

          movfw op2+2                   ; add middle-low byte (bits 15..8)
          addcwf op1+2

          movfw op2+1                   ; add middle-high byte (bits 23...16)
          addcwf op1+1

          movfw op2+0                   ; add high byte       (bits 31...24)
          addcwf op1+0

          endm


;--------------------------------------------------------------------------
; MACRO to perform 32-bit subtraction - subtracts the four bytes at op2
; from the four bytes at op1 (most significant bytes first), returns the
; result in op1 with op2 unchanged and the no carry flag set if underflow
;--------------------------------------------------------------------------

sub32     macro op1,op2                 ; op1 := op1 - op2

          movfw op2+3                   ; subtract low byte
          subwf op1+3 , f

          movfw op2+2                   ; subtract middle low byte
          subncwf op1+2

          movfw op2+1                   ; subtract middle high byte
          subncwf op1+1

          movfw op2+0                   ; subtract high byte
          subncwf op1+0

          endm


;--------------------------------------------------------------------------
; MACRO to negate a 32-bit value  (  op := 0 - op ) .
;--------------------------------------------------------------------------

neg32  macro op                      ; op1 := 0 - op2
       local neg_done
           comf  op,   f             ; invert all 8 bits in high byte
           comf  op+1, f             ; invert all 8 bits in middle high byte
           comf  op+2, f             ; invert all 8 bits in middle low byte
           comf  op+3, f             ; invert all 8 bits in low byte
           ; Note at this point 0x000000 would have turned into 0xFFFFFFF .
           ; Must add ONE to complete the TWO's COMPLIMENT calculation ( -0  = 0 ).
           ; Note that "incf" affects only the Z flag but not the C flag .
           incfsz op+3, f            ; increment low byte        (bits 7...0)
           goto   neg_done           ; if incremented result NOT zero, we're through !
           incfsz op+2, f            ; increment middle low byte (bits 15...8)
           goto   neg_done           ; if incremented result NOT zero, ...
           incfsz op+1, f            ; increment middle high byte (bits 23...16)
           goto   neg_done           ; if ...
           incfsz op+0, f            ; increment high byte       (bits 31...24)
           goto   neg_done           ;
neg_done
       endm




;**********************************************************************
  ORG     0x000             ; processor reset vector
       goto MainInit        ; go to beginning of program
; (begin of ROM is too precious to waste for ordinary code, see below...)



;**************************************************************************
;                                                                         *
; Lookup tables                                                           *
;    Must be at the start of the code memory to avoid crossing pages !!   *
;                                                                         *
;**************************************************************************

;--------------------------------------------------------------------------
; 7-segment LED data table
;--------------------------------------------------------------------------

    ; Index 0..9 used for decimal numbers, all other indices defined below :
CHAR_A    equ  .10                 ; Letters A..F = HEX digits, index 10..15
CHAR_b    equ  .11                 ;
CHAR_c    equ  .12                 ;
CHAR_d    equ  .13                 ;
CHAR_E    equ  .14                 ;
CHAR_F    equ  .15                 ;
CHAR_G    equ  .16                 ; Other letters used in "programming" mode
CHAR_H    equ  .17                 ;
CHAR_i    equ  .18                 ;

BLANK     equ  .19                 ; blank display
TEST      equ  .20                 ; power-on display test

CHAR_P    equ  .21                 ; A few other letters for programming mode...
CHAR_r    equ  .22                 ;
CHAR_o    equ  .23                 ;   "Prog"
CHAR_Q    equ  .24                 ;   "Quit"
CHAR_u    equ  .25                 ;
CHAR_t    equ  .26                 ;
CHAR_S    equ  .27                 ;   "Sub"
CHAR_Z    equ  .28                 ;   "ZEro"
CHAR_I    equ  .29                 ;   large "I" (left aligned!) for "IF"
CHAR_J    equ  .30                 ;
CHAR_k    equ  .31                 ;
CHAR_L    equ  .32                 ;
CHAR_N    equ  .33                 ;
CHAR_V    equ  .34                 ;
CHAR_EQ   equ  .35                 ;   "="


#if (DISP_VARIANT==1)
DPPOINT_BIT equ  4   ; decimal point bit (same for all digits)
#define _A  0x01     ; bitmask for segment A , etc ..
#define _B  0x02
#define _C  0x20
#define _D  0x08
#define _E  0x04
#define _F  0x40
#define _G  0x80
#define _DP 0x10
#endif   ; DISPLAY VARIANT #1
#if (DISP_VARIANT==2) || (DISP_VARIANT==3)
DPPOINT_BIT equ  1   ; decimal point bit (same for all digits)
#define _A  0x40     ; bitmask for segment A , etc ..
#define _B  0x80
#define _C  0x04
#define _D  0x01
#define _E  0x08
#define _F  0x10
#define _G  0x20
#define _DP 0x02
#endif   ; DISPLAY VARIANT #2 + #3


BLANK_PATTERN equ b'00000000'      ; blank display pattern (7-segment code)


;-----------------------------------------------------------------------------
;  Table to convert a decimal digit or a special character into 7-segment-code
;   Note: In DL4YHF's PIC counter, all digits have the same segment connections,
;         so we do not need individual conversion tables for all segments.
;
;  AAAA
; F    B
; F    B
;  GGGG
; E    C
; E    C
;  DDDD   DP
;
;-----------------------------------------------------------------------------
Digit2SevenSeg:
          addwf PCL,f  ; caution: this is 'PCL' only, not 'PC'. Beware of page borders.
          ; A = 0, B = 1, C = 5, D = 3, E = 2, F = 6, G = 7, DP = 4
#if (COMMON_ANODE)
 #define SSEG_XORMASK 0xFF  ; since 2005-03-21 ... never tested by the author !
#else
 #define SSEG_XORMASK 0x00  ; for COMMON CATHODE: No bitwise EXOR to the pattern
#endif
          retlw (_A+_B+_C+_D+_E+_F   )^SSEG_XORMASK ; ABCDEF. = '0'    ( # 0  )
          retlw (   _B+_C            )^SSEG_XORMASK ; .BC.... = '1'    ( # 1  )
          retlw (_A+_B   +_D+_E   +_G)^SSEG_XORMASK ; AB.DE.G = '2'    ( # 2  )
          retlw (_A+_B+_C+_D      +_G)^SSEG_XORMASK ; ABCD..G = '3'    ( # 3  )
          retlw (   _B+_C      +_F+_G)^SSEG_XORMASK ; .BC..FG = '4'    ( # 4  )
          retlw (_A   +_C+_D   +_F+_G)^SSEG_XORMASK ; A.CD.FG = '5'    ( # 5  )
          retlw (_A   +_C+_D+_E+_F+_G)^SSEG_XORMASK ; A.CDEFG = '6'    ( # 6  )
          retlw (_A+_B+_C            )^SSEG_XORMASK ; ABC.... = '7'    ( # 7  )
          retlw (_A+_B+_C+_D+_E+_F+_G)^SSEG_XORMASK ; ABCDEFG = '8'    ( # 8  )
          retlw (_A+_B+_C+_D   +_F+_G)^SSEG_XORMASK ; ABCD.FG = '9'    ( # 9  )
          retlw (_A+_B+_C   +_E+_F+_G)^SSEG_XORMASK ; ABC.EFG = 'A'    ( # 10 )
          retlw (      _C+_D+_E+_F+_G)^SSEG_XORMASK ; ..CDEFG = 'b'    ( # 11 )
          retlw (         _D+_E   +_G)^SSEG_XORMASK ; ...DE.G = 'c'    ( # 12 )
          retlw (   _B+_C+_D+_E   +_G)^SSEG_XORMASK ; .BCDE.G = 'd'    ( # 13 )
          retlw (_A      +_D+_E+_F+_G)^SSEG_XORMASK ; A..DEFG = 'E'    ( # 14 )
          retlw (_A         +_E+_F+_G)^SSEG_XORMASK ; A...EFG = 'F'    ( # 15 )
          retlw (_A   +_C+_D+_E+_F   )^SSEG_XORMASK ; A.CDEF. = 'G'    ( # 16 )
          retlw (   _B+_C   +_E+_F+_G)^SSEG_XORMASK ; .BC.EFG = 'H'    ( # 17 )
          retlw (            _E      )^SSEG_XORMASK ; ....E.. = 'i'    ( # 18 )

          retlw (BLANK_PATTERN       )^SSEG_XORMASK ; ....... = ' '    ( # 19 )
          retlw (b'11111111'         )^SSEG_XORMASK ; all segments on  ( # 20 )

          ; A few more letters for programming mode :
          retlw (_A+_B      +_E+_F+_G)^SSEG_XORMASK ; AB..EFG = 'P'    ( # 21 )
          retlw (            _E   +_G)^SSEG_XORMASK ; ....E.G = 'r'    ( # 22 )
          retlw (      _C+_D+_E   +_G)^SSEG_XORMASK ; ..CDE.G = 'o'    ( # 23 )
          retlw (_A+_B+_C      +_F+_G)^SSEG_XORMASK ; ABC..FG = 'Q'    ( # 24 )
          retlw (      _C+_D+_E      )^SSEG_XORMASK ; ..CDE.. = 'u'    ( # 25 )
          retlw (         _D+_E+_F+_G)^SSEG_XORMASK ; ...DEFG = 't'    ( # 26 )
          retlw (_A   +_C+_D   +_F+_G)^SSEG_XORMASK ; A.CD.FG = 'S'    ( # 27 )
          retlw (_A+_B   +_D+_E   +_G)^SSEG_XORMASK ; AB.DE.G = 'Z'    ( # 28 )
          retlw (            _E+_F   )^SSEG_XORMASK ; ....EF. = 'I'    ( # 29 )
          retlw (   _B+_C+_D         )^SSEG_XORMASK ; .BCD..  = 'J'    ( # 30 )
          retlw (         _D+_E+_F+_G)^SSEG_XORMASK ; ...DEFG = 'k'    ( # 31 )
          retlw (         _D+_E+_F   )^SSEG_XORMASK ; ...DEF. = 'L'    ( # 32 )
          retlw (_A+_B+_C   +_E+_F   )^SSEG_XORMASK ; ABC.EF. = 'N'    ( # 33 )
          retlw (      _C+_D+_E+_F   )^SSEG_XORMASK ; ..CDEF. = 'V'    ( # 34 )
          retlw (         _D      +_G)^SSEG_XORMASK ; ...D..G = '='    ( # 35 )



;--------------------------------------------------------------------------
; Table to control which 7-segment display is enabled. Displays are usually
; COMMON CATHODE (variants 1+2) so pulled low to enable.
; For DISP_VARIANT=3 (COMMON ANODE), the digit-driving pattern is inverted.
; Input:   W = 0 means the MOST SIGNIFICANT DIGIT (the leftmost one), etc.
; Result:  VALUE to be written to ENABLE_PORT to activate the digit
;--------------------------------------------------------------------------
Digit2MuxValue:     ;
          addwf PCL,f  ; caution: this is 'PCL' only, not 'PC'
          ; Note: If the program counter is affected, a command requires to instruction cycles (=8 osc cycles)
#if (DISP_VARIANT==1)  ; muliplexer values for DISPLAY VARIANT #1 :
          retlw b'11110111'        ; most significant digit is on   PA3 (!)
          retlw b'11111110'        ; next less significant dig. on  PA0 (!)
          retlw b'11111011'        ; next less significant dig. on  PA2 (!)
          retlw b'11111101'        ; 4th (sometimes the last) digit PA1 (!)
          retlw b'11111111'        ; 5th (OPTIONAL) least significant digit = NOT (PA3+PA2+PA1+PA0)
#endif   ; DISPLAY VARIANT #1
#if (DISP_VARIANT==2)  ; muliplexer values for DISPLAY VARIANT #2 (5 digits, COMMON CATHODE) :
          retlw b'11110111'        ; most significant digit is on   PA3 (!)
          retlw b'11111011'        ; next less significant dig. on  PA2 (!!)
          retlw b'11111110'        ; next less significant dig. on  PA0 (!!)
          retlw b'11111101'        ; 4th (sometimes the last) digit PA1 (!)
          retlw b'11111111'        ; 5th (OPTIONAL) least significant digit = NOT (PA3+PA2+PA1+PA0)
#endif   ; DISPLAY VARIANT #2
#if (DISP_VARIANT==3)  ; muliplexer values for DISPLAY VARIANT #3 (5 digits, COMMON ANODE) :
                       ; Unused bits (b7..b4) are left HIGH as above .
          retlw b'11111000'        ; most significant digit is on   PA3 (!)
          retlw b'11110100'        ; next less significant dig. on  PA2 (!!)
          retlw b'11110001'        ; next less significant dig. on  PA0 (!!)
          retlw b'11110010'        ; 4th (sometimes the last) digit PA1 (!)
          retlw b'11110000'        ; 5th (OPTIONAL) least significant digit = NOT (PA3+PA2+PA1+PA0)
#endif   ; DISPLAY VARIANT #2



;--------------------------------------------------------------------------
; Powers-of-ten table (32 bits, most significant byte first)
;   Based on an idea by James Hutchby (MadLab, 1996) .
;   Modified for 32-bit arithmetic by Wolfgang Buescher (2004).
;--------------------------------------------------------------------------
TensTable  addwf PCL,f
           cquad   .10000000  ; 10 million is sufficient for the counter itself
           cquad   .1000000
           cquad   .100000
           cquad   .10000
           cquad   .1000
           cquad   .100
           cquad   .10
           cquad   .1


;--------------------------------------------------------------------------
; DISPLAY jump table for programming mode .
;   Loads the display-strings like "quit" etc into the display latches.
; Input parameter:  menu_index (0 .. MI_INDEX_MAX)
; Output placed in  display0..display3
;
;--------------------------------------------------------------------------
PMDisplay:
          movfw  menu_index  ; load menu index into W register
          addwf  PCL, f      ; add W to lower part of program counter (computed jump)
          goto   PmDisp_Quit ; show "quit" (quit programming mode)
          goto   PmDisp_PSave; show "PSave"(power-saving mode on/off)
          goto   PmDisp_Add  ; show "add " (add frequency offset)
          goto   PmDisp_Sub  ; show "sub " (subtract frequency offset)
          goto   PmDisp_Zero ; show "Zero" (set frequency offset to zero)
          goto   PmDisp_StIF ; show "StdIF" (select standard IF from table)
          goto   PmDisp_IF_1 ; show 1st standard IF from table
          goto   PmDisp_IF_2 ; show 2nd standard IF from table
          goto   PmDisp_IF_3 ; show 3rd standard IF from table
          goto   PmDisp_IF_4 ; show 4th standard IF from table
          goto   PmDisp_IF_5 ; show 5th standard IF from table
          goto   PmDisp_Quit ; show "quit" (quit STANDARD IF menu)
          ; Add more display strings here if needed !

;--------------------------------------------------------------------------
; EXECUTION jump table for programming mode .
;   Executes the commands "quit", "psave", "add", "sub", "zero", etc.
; Input parameter:  menu_index (0 .. MI_INDEX_MAX)
;--------------------------------------------------------------------------
PMExecute:   ; Execute the function belonging to menu_index
          movfw  menu_index  ; load menu index into W register
          addwf  PCL, f      ; add W to lower part of program counter (computed jump)
          goto   PmExec_Quit ; quit programming mode
          goto   PmExec_PSave; turn power-saving mode on/off
          goto   PmExec_Add  ; add frequency offset from now on
          goto   PmExec_Sub  ; subtract frequency offset from now on
          goto   PmExec_Zero ; set frequency offset to zero
          goto   PmExec_StIF ; switch to  "Standard IF selection mode"
          goto   PmExec_SelIF ; select 1st standard IF from table
          goto   PmExec_SelIF ; select 2nd standard IF from table
          goto   PmExec_SelIF ; select 3rd standard IF from table
          goto   PmExec_SelIF ; select 4th standard IF from table
          goto   PmExec_Quit ; quit STANDARD IF menu
          ; Add more jumps here if needed !



;**************************************************************************
;                                                                         *
; Procedures                                                              *
;                                                                         *
;**************************************************************************


;--------------------------------------------------------------------------
;  Configure the prescaler for TIMER 0 in the PIC's OPTION register .
;--------------------------------------------------------------------------

; Description of the OPTION register, from the PIC16F628 data sheet:
; bit 7: RBPU: PORTB Pull-up Enable bit
;        1 = PORTB pull-ups are disabled
;        0 = PORTB pull-ups are enabled by individual port latch values
; bit 6: INTEDG: Interrupt Edge Select bit
;        1 = Interrupt on rising edge of RB0/INT pin
;        0 = Interrupt on falling edge of RB0/INT pin
; bit 5: T0CS: TMR0 Clock Source Select bit
;        1 = Transition on RA4/T0CKI pin
;        0 = Internal instruction cycle clock (CLKOUT)
; bit 4: T0SE: TMR0 Source Edge Select bit
;        1 = Increment on high-to-low transition on RA4/T0CKI pin
;        0 = Increment on low-to-high transition on RA4/T0CKI pin
; bit 3: PSA: Prescaler Assignment bit
;        1 = Prescaler is assigned to the WDT
;        0 = Prescaler is assigned to the Timer0 module
; bit 2-0: PS2:PS0: Prescaler Rate Select bits, here shown for TMR0 :
;     000  = 1 : 2
; ... 111  = 1 : 256
;        Note: to count EVERY pulse (1 : 1) with TMR0, the prescaler
;              must be assigned to the WATCHDOG TIMER (WDT) !
; Some examples (for the OPTION register, parameter in W for SetPrescaler):
PSC_DIV_BY_2   equ  b'00100000'   ; let prescaler divide TMR0 by two
PSC_DIV_BY_4   equ  b'00100001'   ; let prescaler divide TMR0 by   4
PSC_DIV_BY_8   equ  b'00100010'   ; let prescaler divide TMR0 by   8
PSC_DIV_BY_16  equ  b'00100011'   ; let prescaler divide TMR0 by  16
PSC_DIV_BY_32  equ  b'00100100'   ; let prescaler divide TMR0 by  32
PSC_DIV_BY_64  equ  b'00100101'   ; let prescaler divide TMR0 by  64
PSC_DIV_BY_128 equ  b'00100110'   ; let prescaler divide TMR0 by 128
PSC_DIV_BY_256 equ  b'00100111'   ; let prescaler divide TMR0 by 256

SetPrescaler:  ; copy W into OPTION register, avoid watchdog trouble
          clrwdt     ; recommended by Microchip ("switching prescaler assignment")
          errorlevel -302 ; Turn off banking message for the next few instructions..
          bsf   STATUS, RP0            ;! setting RP0 enables access to OPTION reg
               ; option register is in bank1. i know. thanks for the warning.
          movwf OPTION_REG             ;! ex: "option" command (yucc)
          bcf   STATUS, RP0            ;! clearing RP0 for normal register access
          errorlevel +302 ; Enable banking message again
          retlw 0


PrescalerOff:  ; turn the prescaler for TMR0 "off"
               ; (actually done by assigning the prescaler to the watchdog timer)
          clrwdt                        ; clear watchdog timer
          clrf  TMR0                    ; clear timer 0 AND PRESCALER(!)
          errorlevel -302 ; Turn off banking message for the next few instructions..
          bsf   STATUS, RP0            ;! setting RP0 enables access to OPTION reg
               ; option register is in bank1. i know. thanks for the warning.
          movlw b'00100111'            ;! recommended by Microchip when
                                       ;! changing prescaler assignment from TMR0 to WDT
          movwf OPTION_REG             ;! ex: "option" command (yucc)
          clrwdt                       ;! clear watchdog again
          movlw b'00101111'            ;! bit 3 set means PS assigned to WDT now
          movwf OPTION_REG             ;! ex: "option" command (yucc)
          bcf   STATUS, RP0            ;! clearing RP0 for normal register access
          errorlevel +302 ; Enable banking message again
          retlw 0


;--------------------------------------------------------------------------
; Power-saving subroutine: Puts the PIC to sleep for ROUGHLY 100 milliseconds .
;  - crystal oscillator turned OFF during this phase
;  - only the internal RC-oscillator for the watchdog keeps running
;  - expiration of watchdog during sleep does NOT reset the PIC,
;    only wakes it up again so normal operation may resume
;  - LED display will be off during this time
;--------------------------------------------------------------------------
Sleep150ms:  ; go to sleep for approx. 150 milliseconds, and then RETURN (no reset)
   ; Details on the PIC's watchdog timer (from PIC16F628 datasheet) :
   ; > The WDT has a nominal timeout period of 18 ms (with
   ; > no prescaler). The timeout periods vary with temperature,
   ; > VDD and process variations from part to part (see
   ; > DC specs).
   ; > The Watchdog Timer is a free running on-chip RC oscillator which does
   ; > not require any external components. This RC oscillator is separate
   ; > from the ER oscillator of the CLKIN pin. That means that the WDT will run,
   ; > even if the clock on the OSC1 and OSC2 pins of the device has been stopped,
   ; > for example, by execution of a SLEEP instruction.
   ; > During normal operation, a WDT timeout generates a device RESET.
   ; > If the device is in SLEEP mode, a WDT timeout causes the device to wake-up
   ; > and continue with normal operation.
   ; > The WDT can be permanently disabled by programming the configuration bit
   ; > WDTE as clear .
   ; In other words, to use the watchdog-timer for "temporary sleep" here ,
   ; it must be ENABLED in the configuration word when programming the PIC.
   ;  (because its not possible to turn it on via software if it's not on).
   ; But once the watchdog timer is ON, it must be FED periodically otherwise
   ; it will reset the PIC during normal operation !
   ; Here (in the frequency counter), the prescaler remains assigned to timer0
   ; so the watchdog interval is ~ 18 milliseconds (+/-, RC-oscillator) .
   ; > The CLRWDT and SLEEP instructions clear the WDT and the postscaler,
   ; > if assigned to the WDT, and prevent it from timing out and generating
   ; >  a device RESET. The TO bit in the STATUS register will be cleared upon
   ; > a Watchdog Timer timeout.
#if(COMMON_CATHODE)  ; display with COMMON CATHODE :
          movlw 0x00                    ; segment drivers LOW to turn off
#else  ; not COMMON CATHODE but COMMON ANODE:
          movlw 0xFF                    ; segment drivers HIGH to turn off
#endif

#ifndef RS232_OUT
          movwf LEDS_PORT               ; turn LED segments off
#else
#ifdef	NON_INVERTING_RS232_OUT
		bcf	LEDS_PORT,	2				; RS232 on RB2 to zero
#else
		bsf	LEDS_PORT,	2				; RS232 on RB2 to one
#endif
; NON_INVERTING_RS232_OUT
#endif
; RS232_OUT
          ; Note: The global interrupt-enable flag (GIE) is off in this application !
          ; To avoid unintended wake-up on 'interrupt' (port level change),
          ; disable all interrupt-SOURCES: Clear T0IE,INTE,RBIE,PEIE too :
          clrf  INTCON                  ; disable all interrupts during SLEEP mode
          clrwdt                        ; clear watchdog timer
          clrf  TMR0                    ; clear timer 0 AND PRESCALER(!)
          errorlevel -302 ; Turn off banking message for the next few instructions..
          bsf   STATUS, RP0            ;! setting RP0 enables access to OPTION reg
               ; option register is in bank1. i know. thanks for the warning.
          movlw b'00101011'            ;! assign PS to WDT; divide by 8 FOR WDT(!)
          movwf OPTION_REG             ;! ex: "option" command (yucc)
          bcf   STATUS, RP0            ;! clearing RP0 for normal register access
          errorlevel +302 ; Enable banking message again
          sleep                         ; sleep for approx 18 ms (one watchdog interval)
          ; The SLEEP command clears the Watchdog Timer and stops the main oscillator.
          ; Only the internal watchdog timer keeps running.
          ; The WDT is is also cleared when the device wakes-up from SLEEP,
          ; regardless of the source of wake-up, so no need for 'clrwdt' here !
          nop    ; arrived here, slept for ~ 8 times 18 milliseconds
          return ; end  Sleep150ms




;--------------------------------------------------------------------------
; Convert a character into LEDs data for the 7-segment displays, fed with
; the character in w.  Bit 7 set means 'decimal point AFTER this digit' .
;--------------------------------------------------------------------------
; WAS print 5 digits with MHz and kHz indication/.

conv      macro display                 ; macro for duplicate code
          movwf display                 ; save decimal point bit (msb)
          andlw 7fh                     ; mask bit

#ifndef RS232_OUT
          call  Digit2SevenSeg          ; convert digit into 7-segment-code via table
          btfsc display,7               ; check bit 7 = decimal point ?

#if(COMMON_CATHODE)
          iorlw 1<<DPPOINT_BIT          ; include decimal point if bit 7 set (bitwise OR)
#else  ; not COMMON CATHODE but COMMON ANODE: decimal point must be 'AND'ed to pattern:
          andlw (1<<DPPOINT_BIT)^0xFF   ; include decimal point if bit 7 set (bitwise AND)
#endif
		movwf	display                 ; set display data register

#else	; RS232_OUT

#ifdef RS232_PRINT_FIELD_3
		movwf	temp					; save w

; BLANK, displayed as 'C', indicates no input, going to skip printing those.
		bcf		print_flags,	NO_INPUT_FLAG
; no jumps in macro
		movlw	BLANK
		subwf	temp, w
		btfsc	STATUS, Z
		bsf		print_flags,	NO_INPUT_FLAG

; get back value to print
		movfw	temp
; test if anything other then zero, if so display it
		btfss	print_flags,	NO_INPUT_FLAG
		call	tx_digit_in_w

; test for decimal point
		btfsc	display, 7
		call	tx_dot
#endif	; RS232_PRINT_FIELD_3

#endif

          endm

; 7 segment out
conv_char0:   ; display digit #0  (leftmost, or MOST SIGNIFICANT digit)
          conv  display0
          retlw 0

conv_char1:   ; display #1
          conv  display1
          retlw 0

conv_char2:   ; display #2
          conv  display2
          retlw 0

conv_char3:   ; display #3
          conv  display3
          retlw 0

conv_char4:   ; display #4  (rightmost, or LEAST SIGNIFICANT digit, "ones")
          conv  display4

#ifdef RS232_OUT

#ifdef RS232_PRINT_FIELD_3
; print a space
		movlw ' '
		call tx_w

; test if to print kHz or MHz
		btfsc	print_flags, KILOHERTZ_FLAG
		goto	print_kilo
; print 'M'
		movlw	'M'
		call	tx_w
		goto	print_hertz

print_kilo:
		movlw	'k'
		call	tx_w

; say Hz
print_hertz:
		movlw	'H'
		call	tx_w

		movlw	'z'
		call	tx_w
#endif	RS232_PRINT_FIELD_3

; send a CR LF
		movlw	D'10'
		call	tx_w

		movlw	D'13'
		call	tx_w

#endif	; RS232_OUT

          retlw 0
; 7 segment out

;--------------------------------------------------------------------------
; Fill the 5-digit display latch with blank characters
;--------------------------------------------------------------------------
ClearDisplay:
          movlw BLANK_PATTERN
          movwf display0
          movwf display1
          movwf display2
          movwf display3
          movwf display4
          retlw 0



;--------------------------------------------------------------------------
; Save a single Byte in the PIC's Data-EEPROM.
;  Input parameters:
;    INDF = *FSR    contains byte to be written (was once EEDATA)
;    w              contains EEPROM address offset (i.e. "destination index")
;
;--------------------------------------------------------------------------
        ; write to EEPROM data memory as explained in the 16F628 data sheet.
        ; EEDATA and EEADR must have been set before calling this subroutine
        ; (optimized for the keyer-state-machine).
        ; CAUTION : What the lousy datasheet DS40300B wont tell you:
        ;           The example given there for the 16F628 is WRONG !
        ;           All EEPROM regs are in BANK1 for the 16F628.
        ;           In the PIC16F84, some were in BANK0 others in BANK1..
        ; In the PIC16F628, things are much different... all EEPROM regs are in BANK1 !
SaveInEEPROM:    ; save "INDF" = *FSR   in EEPROM[<w>]
         bcf     INTCON, GIE           ; disable INTs
         errorlevel -302 ; Turn off banking message for the next few instructions..
         bsf     STATUS, RP0         ;!; Bank1 for "EEADR" access, PIC16F628 ONLY (not F84)
         movwf   EEADR               ;!; write into EEPROM address register (BANK1 !!)
         bcf     STATUS, RP0         ;!; Bank0 to read "bStorageData"
         movfw   INDF                ; ; w := *FSR (read source data from BANK 0)
         bsf     STATUS, RP0         ;!; Bank1 for "EEDATA" access, PIC16F628 ONLY (not F84)
         movwf   EEDATA              ;!; EEDATA(in BANK1) := w  (BANK1; F628 only, NOT F84 !!!)
         bsf     EECON1, WREN        ;!; set WRite ENable
         bcf     INTCON, GIE         ;!; Is this REALLY required as in DS40300B Example 13-2 ?
         movlw   055h                ;!;
         movwf   EECON2              ;!; write 55h
         movlw   0AAh                ;!;
         movwf   EECON2              ;!; write AAh
         bsf     EECON1, WR          ;!; set WR bit, begin write
         ; wait until write access to the EEPROM is complete.
SaveEW:  btfsc   EECON1, WR          ;!; WR is cleared after completion of write
         goto    SaveEW              ;!; WR=1, write access not finished yet
         ; Arrived here: the EEPROM write is ready
         bcf     EECON1, WREN        ;!; disable further WRites
         bcf     STATUS, RP0         ;!; Bank0 for normal access
         errorlevel +302 ; Enable banking message again
   ;     bsf     INTCON, GIE           ; enable INTs ? NOT IN THIS APPLICATION !
         retlw   0  ; end SaveInEEPROM


;--------------------------------------------------------------------------
; Read a single Byte from the PIC's Data-EEPROM.
;  Input parameters:
;    w    contains EEPROM address offset (i.e. "source index")
;         will *NOT* be modified to simplify block-read .
;    FSR  points to the memory location where the byte shall be placed.
;
;  Result:
;     INDF = *FSR  returns the read byte
;--------------------------------------------------------------------------
        ; Caution: EEDATA and EEADR have been moved from Bank0(16F84) to Bank1(16F628)
        ;          and the example from the datasheet telling you to switch to
        ;          bank0 to access EEDATA is rubbish (DS40300B page 93 example 13-1).
EEPROM_ReadByte:    ; read ONE byte from the PIC's data EEPROM
        movwf   bTemp       ; save W
        bcf     INTCON, GIE  ; disable INTs
        errorlevel -302 ; Turn off banking message for the next few instructions..
        bsf     STATUS, RP0  ; Bank1 for ***ALL*** EEPROM registers in 16F628 (!)
        movwf   EEADR        ;! write into EEPROM address register
        bsf     EECON1, RD   ;! set "Read"-Flag for EEPROM
                             ;   why is EECON1.RD not cleared in MPLAB-sim ?!?
        movf    EEDATA, w    ;! read byte from EEPROM latch
        bcf     STATUS, RP0  ;! normal access to Bank0
        errorlevel +302 ; Enable banking message again
    ;   bsf     INTCON, GIE  ; re-enable interrupts ? NOT IN THIS APPLICATION !
        movwf   INDF         ; place result in *FSR
        movfw   bTemp       ; restore W
        return               ; back to caller
 ; end EEPROM_ReadByte

EEPROM_Read4Byte: ; read FOUR bytes from the PIC's data EEPROM.
        ;  Input parameters:
        ;    w    contains EEPROM address offset (i.e. "source index")
        ;         will *NOT* be modified to simplify block-read .
        ;    FSR  points to the memory location where the byte shall be placed.
        call    EEPROM_ReadByte ; *FSR = EEPROM[w]   (usually bits 31..24)
        addlw   1               ; next source address
        incf    FSR , f         ; next destination address
        call    EEPROM_ReadByte ; *FSR = EEPROM[w]   (usually bits 23..16)
        addlw   1               ; next source address
        incf    FSR , f         ; next destination address
        call    EEPROM_ReadByte ; *FSR = EEPROM[w]   (usually bits 15..8)
        addlw   1               ; next source address
        incf    FSR , f         ; next destination address
        goto    EEPROM_ReadByte ; *FSR = EEPROM[w]   (usually bits  7..0)
 ; end EEPROM_Read4Byte




;--------------------------------------------------------------------------
; Count pulses, fed with the number of loop iterations for the gate time .
;               WHILE counting, the multiplexed LED display is updated .
;               Watchdog is fed in this loop !
; Input:    Count of gate-time-loops in 'gatecnt_hi'+'gatecnt_lo' (16 bit).
; Returns:  The number of pulses in 'freq' (clock cycles in [])
;--------------------------------------------------------------------------
count_pulses:
          clrf freq_hi                  ; clear pulse counter (bits 31..24)
          clrf freq_mh                  ; bits 23..16
          clrf freq_ml                  ; bits 16..8
          clrf freq_lo                  ; bits  7..0

          clrf timer0_old               ; 'old' value of timer0 to detect toggling MSB
          clrf TMR0                     ; timer register (PIC's hardware timer, 8 bit)

          nop                           ; 2 instruction cycle delay
          nop                           ; after writing to TMR0  (MPLAB-SIM: set breakpoint + clear stopwatch here)


; --------------- start of critial timing loop >>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>

; The following timing loop must take a well-defined time in total per
; iteration, usually 50 (or 20) microseconds, which can be precisely achieved
; with a 4-MHz-crystal (or 20 MHz for variant 2+3) .
; This gives a basic delay for the frequency counter's gate time .
;    The frequency at the input of TIMER 0 (not the prescaler)
;    can not exceed f_crystal / 4,
;    and every HIGH->LOW transition of bit7 in TIMER0 must be polled here.
;  This is safe because ..
;    Variant 1:  With a 4-MHz-crystal, Timer0 can count up to 1 MHz input,
;                MSB toggles every (128/1MHz) = 128 us, polled every 50us  -> ok.
;    Variant 2:  With a 20-MHz-crystal, Timer0 can count up to 4 (not 5?!) MHz input,
;                MSB toggles every (128/4MHz) = 32 us, polled every 20us -> ok.

;  The numbers in square brackets below are the INSTRUCTION NUMBER within the loop.
;  (not the count of oscillator cycles for a single command, which is always 4).
;  These values can be checked with the "Stopwatch" function in MPLAB-SIM.
;  The goal is to let this loop take EXACTLY <TIME> microseconds (50us or 20us).

count1    movfw disp_index              ; [1] get the current digit number (disp_index = 0..4)
          call  Digit2MuxValue          ; [2,3,4,5,6,7] display (6 commands including call+retlw)
          movwf bTemp                   ; [8] save the bit pattern for the multiplexer port
          movlw display0                ; [9]  get the LED display data for the current digit...
          addwf disp_index,w            ; [10] add current digit number to address of LED data
          movwf FSR                     ; [11] move address into the PIC's poor 'data pointer'
#ifndef RS232_OUT
          movfw INDF                    ; [12] w := *(FSR) use indirection register to read from table
          movwf LEDS_PORT               ; [13] set the LED segments
#else
; leave port B alone, so as not to disturb RS232 software out.
		nop
		nop
#endif

          movfw bTemp                   ; [14] get the mupliplexer pattern (hurry, hurry !)
          movwf ENABLE_PORT             ; [15] set the LED multiplexer

          incf  disp_timer,f            ; [16] increment display-multiplex timer
          btfsc disp_timer,6            ; [17] (6-bit prescaler)
          incf  disp_index,f            ; [18] next display if rolled over
          bcf   disp_timer,6            ; [19] limit disp_timer to 6 bits (!)
          movfw disp_index              ; [20] limit display index to  0...4
          sublw .4                      ; [21] subtract #4 - W register -> C=0(!) if result negative (W>4)
          btfss STATUS,C                ; [22] skip next instruction if C=1 (#4-W >= 0)
          clrf  disp_index              ; [23] if C=0 (disp_index>4) then disp_index=0

; the following fragments of code always take the same number of clock
; cycles to execute, irrespective of whether the skips take place or not .
; Here still in 'count_pulses'.

          movfw TMR0                    ; [24] read least significant byte of
          movwf freq_lo                 ; [25]  pulse counter (bits 7..0)

          movlw 1                       ; [26] determine if timer 0 has rolled
          btfss timer0_old,7            ; [27] over (rolled over if msb was
          clrw                          ; [28] previously set and now isn't)
          btfsc freq_lo,7               ; [29]
          clrw                          ; [30]

          addwf freq_ml,f               ; [31] increment high bytes of pulse counter
          skpnc                         ; [32] if low byte rolled over
          incf freq_mh,f                ; [33] (mh = "medium high byte" of counter)
                                        ; NOTE: we are not modifying freq_hi here !
                                        ;       Bits 31..24 may be used later when multiplying with some factor
                                        ;       (2^n) to compensate for the ASYNCHRON PRESCALER !

          btfsc freq_mh,7               ; [34] overflow (freq > 7fffffh) ?
          goto  count3                  ; [35] branch if yes

          movfw freq_lo                 ; [36] save previous value from timer 0
          movwf timer0_old              ; [37]

          tstf gatecnt_lo               ; [38] check inner gate-time counter, LOW byte
          skpnz                         ; [39] only decrement h-byte if l-byte zero
          decf gatecnt_hi,f             ; [40]  decrement gate-time counter, HIGH byte
          decf gatecnt_lo,f             ; [41] always decrement gate-time counter, LOW byte

#if (DISP_VARIANT==1)  ; only 50 instruction cycles per loop in DISPLAY VARIANT 1 (f_xtal=4 MHz, t_loop=50us)
          ; Got some instruction cycles left ? Insert a few NOPs to bring to total loop time to 50us.
          clrwdt                        ; [42] (ex: nop, but since 2006-05-28 the dog must be fed !)
          nop                           ; [43]
          nop                           ; [44]
          nop                           ; [45]  ugh, what a waste of precious CPU power ;-)

          movfw gatecnt_hi              ; [46] counter = 0 ?
          iorwf gatecnt_lo,w            ; [47]
          skpz                          ; [48]
          goto count1                   ; [49,50]  goto always takes TWO instruction cycles
#else   ; For VARIANTS 2+3 : 100 instruction cycles per loop
        ; (f_xtal=20 MHz, t_loop=20us, t_instr=4/20MHz=0.2us)
        ; Some time may be used for a nice software-based PULSE WIDTH MODULATION
        ; of the display intensity ... or other goodies/gimmicks one fine day !
          clrwdt                        ; [42] (ex: nop, but since 2006-05-28 the dog must be fed !)
          movlw .12                     ; [43] load additional delay loops (X=12, see below) into W
WasteT1:  addlw 0xFF                    ; [44,   48, .. ]
          btfss STATUS, Z               ; [45,   49, .. ]      eats 4(!) INSTRUCTION CYCLES per loop
          goto  WasteT1                 ; [46+47,50+51, .. ]
                          ; Check this with MPLAB-SIM: here, after loop: [43 + 4*X], with X=12: [91]
          nop                           ; [91]
          nop                           ; [92]
          nop                           ; [93]
          nop                           ; [94]
          nop                           ; [95]
          movfw gatecnt_hi              ; [96] counter = 0 ?
          iorwf gatecnt_lo,w            ; [97]
          skpz                          ; [98]
          goto count1                   ; [99,50]  goto always takes TWO instruction cycles
#endif ; variant 1 or variant 2/3 ?

; <<<<<<<<<<<<<<<<<<<<<<<< end of timing loop -----------------------------

          movfw TMR0                    ; get final value from timer 0
          movwf freq_lo

          movlw 1                       ; determine if timer 0 has rolled
          btfss timer0_old,7            ; over (rolled over if msb was
          clrw                          ; previously set and now isn't)
          btfsc freq_lo,7
          clrw

          addwf freq_ml,f               ; increment high bytes of pulse
          skpnc                         ; counter if low byte rolled
          incf freq_mh,f                ; over

count3    retlw 0

; end of routine 'count_pulses'.   Result now in   freq_lo..freq_hi.


#ifdef RS232_OUT
tx_dot:
	movlw	'.'
	call	tx_w
	return


; send_one_char
; the actual RS232 transmission routine, half-duplex, no-flow-control.
; See AN510 for an explanation
tx_digit_in_w:
    addlw   '0'                     ; zero
tx_w:
	banksel	0

;	return

;	movlw	'A'
	movwf	tx_reg					; move W (char to send) to TXReg

	movlw	0x08
	movwf	bit_count				; send 8 bits

; send start bit
#ifdef NON_INVERTING_RS232_OUT
	bsf		RS232_PORT,	RS232_BIT
#else
	bcf		RS232_PORT,	RS232_BIT
#endif

	nop
	nop
	nop
	nop
	call	bit_delay

; send data bits
send_next_bit:
	bcf     STATUS,	C
	rrf     tx_reg,	1				; rotate TXReg

	btfsc   STATUS,	C
	goto	set_tx

clear_tx:
	nop								; to get equal set/clear times
#ifdef NON_INVERTING_RS232_OUT
	bsf		RS232_PORT,	RS232_BIT
#else
	bcf		RS232_PORT,	RS232_BIT
#endif
	goto	ready_tx

set_tx:
#ifdef NON_INVERTING_RS232_OUT
	bcf		RS232_PORT,	RS232_BIT
#else
	bsf		RS232_PORT,	RS232_BIT
#endif
	goto	ready_tx

ready_tx:
	call    bit_delay
	decfsz  bit_count,1				; decrement bit counter (8..0)
	goto    send_next_bit			; loop for next data bit

	nop
	nop
	nop
	nop
	nop

; send first stop bit
#ifdef NON_INVERTING_RS232_OUT
	bcf		RS232_PORT,	RS232_BIT
#else
	bsf		RS232_PORT,	RS232_BIT
#endif
	call    bit_delay

; send second stop bit
;	call 	bit_delay

	return


; This routine is calibrated with BIT_DELAY to 104 us, that makes  BAUD_DIVIDER 1 for 9600 Bd, 2 for 4800 Bd, 4 for 2400 Bd, 8 for 1200 Bd, 16 for 600 Bd, 32 for 300 Bd, 64 for 150 Bd, and 128 for 75 Bd.
bit_delay:
; prevent watchdog from interrupting serial com
	clrwdt							; should be called on a regular basis

; Multiply bit delay for lower baudrates.
	movlw	BAUD_DIVIDER
	movwf	baud_divider
baud_divider_loop:

; this is the delay of about 104 uS for 9600 Bd
	movlw	BIT_DELAY				; move baud delay constant to W
	movwf	delay_counter 			; initialize delay counter
us100_delay_loop:
	decfsz	delay_counter			; decrement delay counter
	goto	us100_delay_loop


	decfsz	baud_divider
	goto	baud_divider_loop

	return
#endif
; RS232_OUT


;--------------------------------------------------------------------------
; Convert *FSR (32 bit) into BCD and show it on the display .
;  Input :  INDF = *FSR, 32-bit integer.
;  Bad side effect : CONTENTS OF <freq> will be lost !!
;--------------------------------------------------------------------------
ShowInt32_FSR   ; Convert <*FSR> (32 bit integer) to 8 BCD-digits ...
          movfw  INDF        ; W   := *FSR   , load LOW byte
          incf   FSR , f     ; FSR := FSR + 1
          movwf  freq        ; freq.hi := W
          movfw  INDF        ; W   := *FSR   , load MIDDLE LOW byte
          incf   FSR , f     ; FSR := FSR + 1
          movwf  freq+1      ; freq.mh := W
          movfw  INDF        ; W   := *FSR   , load MIDDLE HIGH byte
          incf   FSR , f     ; FSR := FSR + 1
          movwf  freq+2      ; freq.ml := W
          movfw  INDF        ; W   := *FSR   , load HIGH byte
          incf   FSR , f     ; FSR := FSR + 1
          movwf  freq+3      ; freq.lo := W
          ; continue with CvtAndDisplayFreq !

;--------------------------------------------------------------------------
; Convert <freq> into BCD and show it on the display .
;  Input :  freq, 32-bit integer.  CONTENTS OF <freq> will be lost !!
;--------------------------------------------------------------------------
CvtAndDisplayFreq  ; Convert <freq>(32 bit integer) to 8 BCD-digits ...

          clrf  tens_index              ; initialise the table index

          movlw digits                  ; initialise the indirection register
          movwf FSR                     ; ( FSR="pointer"; *FSR=INDF)

conv1     ; Loop for ALL POWERS OF TEN in the lookup table..
          clrwdt                        ; feed the watchdog (may stay a bit longer)
          movfw tens_index              ; fetch the next power of ten
          call  TensTable               ; (32 bits) from the lookup table
          movwf divi+0                  ; and store in divi
          incf  tens_index , f          ; this was the HIGH byte

          movfw tens_index
          call  TensTable
          movwf divi+1
          incf  tens_index , f          ; this was the MIDDLE-HIGH byte

          movfw tens_index
          call  TensTable
          movwf divi+2
          incf  tens_index , f          ; this was the MIDDLE-LOW byte

          movfw tens_index
          call  TensTable
          movwf divi+3
          incf  tens_index , f          ; and this was the LOW-byte of a power of ten

          ; ex: clrf 0  ; clear the decimal digit .. but address ZERO is called 'INDF' these days !
          clrf  INDF                    ; *FSR = 0

conv2     ; Loop to repeatedly subtract divi from freq (32-bit subtract)
          ;         until underflow while incrementing the decimal digit.
          sub32 freq,divi               ; freq := freq - divi  (with divi = 10 power N)
          bnc conv3                     ;
          incf INDF , f                 ;    The RESULT will be written back to freq,
          goto conv2                    ;    in other words 'freq' will be lost !

conv3     add32 freq,divi               ; freq := freq+divi;  ready for next digit
          incf FSR , f                  ; step to next decimal digit
          movlw 8*4                     ; 8 x 4-byte entries in TensTable
          subwf tens_index,w
          bnz conv1                     ; loop until end of table

;--------------------------------------------------------------------------
; displays the frequency in decimal
;--------------------------------------------------------------------------

display_freq:
; Display the decimal digits according to the following rules
; 000000A => "0.00A"
; 00000AB => "0.0AB"
; 0000ABC => "0.ABC"
; 000ABCD => "A.BCD"
; 00ABCDE => "AB.CD"
; 0ABCDEF => "ABC.D"
; ABCDEFG => "ABCD."
;    Modified a lot by WoBu to display kHz as well as MHz :
;      If the decimal point means kHz, it flashes.
;      If it means MHz, it is on permanently.
;      24 bit unsigned integer could count up to 16777216 (16 mio, slightly over 7 digits)
;      which was not enough for a 50 MHz counter, so switched to 32-bit arithmetic .
;

#ifdef RS232_OUT

#ifdef RS232_PRINT_FIELD_1
; WAS print 8 digits as one field for parsin gby user programs, no leading zero suppression
; print_value simple
	movlw	digits
	movwf	FSR

	movfw	INDF
	call	tx_digit_in_w

	incf	FSR
	movfw	INDF
	call	tx_digit_in_w

	incf	FSR
	movfw	INDF
	call	tx_digit_in_w

	incf	FSR
	movfw	INDF
	call	tx_digit_in_w

	incf	FSR
	movfw	INDF
	call	tx_digit_in_w

	incf	FSR
	movfw	INDF
	call	tx_digit_in_w

	incf	FSR
	movfw	INDF
	call	tx_digit_in_w

	incf	FSR
	movfw	INDF
	call	tx_digit_in_w

; print 2 spaces
	movlw	' '
	call	tx_w

	movlw	' '
	call	tx_w

#endif ; RS232_PRINT_FIELD_1


#ifdef RS232_PRINT_FIELD_2
; print value in Hz, with leading zero surpression
; print_value: thoudands separated by commas
	bsf		print_flags,	ZERO_SUPPRESSION_FLAG

	movlw	digits
	movwf	FSR
	tstf	INDF
	bz		pri_1000000

pri_10000000:
	bcf		print_flags,	ZERO_SUPPRESSION_FLAG
	movfw	INDF
	tstf	INDF
	bz		pri_100000
	call	tx_digit_in_w

pri_1000000:
	incf	FSR
; test if zero supression active
	btfss	print_flags, ZERO_SUPPRESSION_FLAG
	goto	pri_a
	tstf	INDF
	bz		pri_100000
pri_a:
	bcf		print_flags,	ZERO_SUPPRESSION_FLAG
	movfw	INDF
	call	tx_digit_in_w

	movlw	','
	call	tx_w

pri_100000:
	incf	FSR
	btfss	print_flags, ZERO_SUPPRESSION_FLAG
	goto	pri_b
	tstf	INDF
	bz		pri_10000
pri_b:
	bcf		print_flags,	ZERO_SUPPRESSION_FLAG
	movfw	INDF
	call	tx_digit_in_w


pri_10000:
	incf	FSR
	btfss	print_flags, ZERO_SUPPRESSION_FLAG
	goto	pri_c
	tstf	INDF
	bz		pri_1000
pri_c:
	bcf		print_flags,	ZERO_SUPPRESSION_FLAG
	movfw	INDF
	call	tx_digit_in_w


pri_1000:
	incf	FSR
	btfss	print_flags, ZERO_SUPPRESSION_FLAG
	goto	pri_d
	tstf	INDF
	bz		pri_100
pri_d:
	bcf		print_flags,	ZERO_SUPPRESSION_FLAG
	movfw	INDF
	call	tx_digit_in_w

	movlw	','
	call	tx_w


pri_100:
	incf	FSR
	btfss	print_flags, ZERO_SUPPRESSION_FLAG
	goto	pri_e
	tstf	INDF
	bz		pri_10
pri_e:
	bcf		print_flags,	ZERO_SUPPRESSION_FLAG
	movfw	INDF
	call	tx_digit_in_w


pri_10:
	incf	FSR
	btfss	print_flags, ZERO_SUPPRESSION_FLAG
	goto	pri_f
	tstf	INDF
	bz		pri_1
pri_f:
	bcf		print_flags,	ZERO_SUPPRESSION_FLAG
	movfw	INDF
	call	tx_digit_in_w

pri_1:
	incf	FSR
	movfw	INDF
	call	tx_digit_in_w

pri_space:
; space
	movlw	' '
	call	tx_w

; Hz
	movlw	'H'
	call	tx_w

	movlw	'z'
	call	tx_w

; print 2 spaces
	movlw	' '
	call	tx_w

	movlw	' '
	call	tx_w

#endif ; RS232_PRINT_FIELD_2

#endif	; RS232_OUT

    ; Display routine for frequencies up to "99.99 MHz" (theoretical):
          ; (do NOT insert the decimal point yet,
          ;   it would disturb the blanking of LEADING zeroes )
          movlw digits                  ; find the first significant digit..
          movwf FSR                     ; .. by stepping over leading zeroes
          tstf  INDF                    ; INDF = *(FSR) in "C" syntax, FSR points to 'digits'
          bnz   displ_MHz               ; 10-MHz-digit non-zero, show frequency in MHz
          incf  FSR  ,  f               ; otherwise skip 1st digit (the 10-MHz place)
          tstf  INDF
          bnz   displ_MHz               ; 1-MHz-digit non-zero, show frequency in MHz
          incf  FSR  ,  f               ; otherwise skip 2nd digit (the 1-MHz place)
          tstf  INDF
          bnz   displ_kHz               ; 100-kHz-digit non-zero, show frequency in kHz (XXX.X)
          incf  FSR  ,  f               ; otherwise skip 3rd digit (the 100-kHz place)
          tstf  INDF
          bnz   displ_kHz               ; 10-kHz-digit non-zero, show frequency in kHz  (XX.XX)
          incf  FSR  ,  f               ; Otherwise show digits 5,6,7,8 (there are EIGHT digits)
                                        ; show all these frequencies with flashing kHz-point (X.XXX)

displ_kHz:   ; insert a BLINKING POINT to indicate the kilohertz-digit

#ifndef RS232_OUT
          btfsc blinker, 0  ; check the blink flag (bit 0) for the kHz-point
#endif
; RS232_OUT
; in RS232_OUT we always have a dot if kHz (non blinking).
          bsf digit_4, 7    ; set the decimal point indicating the frequency in kHz .

		bsf	print_flags, KILOHERTZ_FLAG

          goto  display

displ_MHz:   ; insert a BLINKING POINT to indicate the kilohertz-digit
          bsf   digit_1, 7  ; set the decimal point indicating the frequency in MHz .

		bcf	print_flags,	KILOHERTZ_FLAG

display:  ; Show the FIVE digits beginning at INDF = *(FSR) on the LED display...
          movfw  INDF                   ; convert the four digits to
          call   conv_char0             ; LED display data
          incf   FSR  ,  f              ; increment pointer to next digit
          movfw  INDF                   ; w = *(FSR)
          call   conv_char1             ; second visible digit
          incf   FSR  ,  f
          movfw  INDF
          call   conv_char2             ; third visible digit
          incf   FSR  ,  f
          movfw  INDF
          call   conv_char3             ; fourth visible digit
          incf   FSR  ,  f
          movfw  INDF
          goto   conv_char4             ; convert fifth  visible digit AND RETURN
; end of routine "CvtAndDisplayFreq"


;--------------------------------------------------------------------------
; main entry point
;--------------------------------------------------------------------------

MainInit:

#IF 0   ; Test some math macros ?
          clrf  freq2_hi
          clrf  freq2_mh
          clrf  freq2_ml
          movlw .100
          movwf freq2_lo
          neg32 freq2                  ; -100 = 0xFFFFFF9C
#ENDIF  ; Test !


          movlw PORT_A_IO               ; initialise port A
          errorlevel -302 ; Turn off banking message for the next few instructions..
          bsf   STATUS, RP0            ;! setting RP0 enables access to TRIS regs
          movwf PORTA                  ;! looks like PORTA but is in fact TRISA
          bcf   STATUS, RP0            ;! clearing RP0 enables access to PORTs
          clrf PORTA

          movlw PORT_B_IO               ; initialise port B
          bsf   STATUS, RP0            ;! setting RP0 enables access to TRIS regs
          movwf PORTB                  ;! looks like PORTB but is in fact TRISB
          bcf   STATUS, RP0            ;! clearing RP0 enables access to PORTs
          errorlevel +302 ; Enable banking message again
          clrf  PORTB

          clrf disp_index               ; initialise display index and
          clrf disp_timer               ; display multiplex timer

          movlw BLANK                   ; blank character as dummy ...
          movwf digit_8                 ; for the lowest frequency display range

          movlw TEST                    ; test all LED segments
          call  conv_char0
          movlw TEST
          call  conv_char1
          movlw TEST
          call  conv_char2
          movlw TEST
          call  conv_char3
          movlw TEST
          call  conv_char4


          movlw PSC_DIV_BY_256          ; let the prescaler divide by 256 while testing..
          call  SetPrescaler            ; safely write <W> into option register

#if(DEBUG==0)
          ; Do a LAMP TEST for half a second, including all decimal points :
          movlw (LAMPTEST_LOOPS)>>8     ; high byte for 0.5 second lamp test
          movwf gatecnt_hi
          movlw (LAMPTEST_LOOPS)&0ffh   ; low byte for 0.5 second lamp test
          movwf gatecnt_lo
          call count_pulses             ; some delay to show the test pattern
#endif ; not DEBUG


MainRestart:  ; Here we "restart" the counter after exiting from programming mode :
          clrf   psave_timer              ; clear timer for power-save mode (no immediate power-down)
          clrf   psave_flags              ; clear all power-saving flags (PSFLAG_ACTIVE, etc)
          movlw  foffs                    ; load destination address for reading from EEPROM...
          movwf  FSR                      ; ..into the PIC's pointer register
          movlw  EEPROM_ADR_FREQ_OFFSET+0 ; load the EEPROM-internal address offset (=source index)
          call   EEPROM_Read4Byte         ; read from EEPROM:    foffs..foffs+4 := EEPROM[W]
          movlw  options                  ; another destination address for reading from EEPROM..
          movwf  FSR                      ;
          movlw  EEPROM_ADR_OPTIONS       ; load EEPROM-internal offset of "options"-byte
          call   EEPROM_ReadByte          ; read single byte from EEPROM: options := EEEPROM[W]
#if(DEBUG==1)
          bsf    OPT_PWRSAVE ; enable power-save mode for debugger/simulator
#endif ; DEBUG

          ; Blank the display until 1st measurement is available :
          call  ClearDisplay


;--------------------------------------------------------------------------
; main loop :  Preparation, auto ranging, measurement, conversion, display
;--------------------------------------------------------------------------

MainLoop:

          ; re-initialise ports
          ; ex: tris  PORTA;   tris  PORTB
          errorlevel -302 ; Turn off banking message for the next few instructions..
          bsf   STATUS, RP0            ;! setting RP0 enables access to TRIS regs
          movlw PORT_A_IO              ;!
          movwf PORTA                  ;! looks like PORTA but is in fact TRISA
          movlw PORT_B_IO              ;!
          movwf PORTB                  ;! looks like PORTB but is in fact TRISB
          bcf   STATUS, RP0            ;! clearing RP0 enables access to PORTs
          clrwdt                        ; configure TMR0... but clear watchdog timer first
          movlw b'100000'               ; value for OPTION reg: edge - low-to-high transition,
                                        ;  + prescaler assigned to Timer 0, 1:2
          bsf   STATUS, RP0            ;! setting RP0 enables access to OPTION reg
               ; option register is in bank1. i know. thanks for the warning.
          movwf OPTION_REG             ;! ex: "option" command (yucc)
          bcf   STATUS, RP0            ;! clearing RP0 for normal register access
          errorlevel +302 ; Enable banking message again

#ifdef BAUDRATE_TEST
test1:
	movlw	'A'
	call	tx_w

	call	bit_delay
	call	bit_delay
	call	bit_delay
	call	bit_delay
	call	bit_delay
	call	bit_delay
	call	bit_delay
	call	bit_delay
	call	bit_delay
	call	bit_delay
	call	bit_delay
	call	bit_delay
	call	bit_delay
	call	bit_delay
	call	bit_delay
	call	bit_delay
	call	bit_delay
	call	bit_delay
	goto	test1
#endif
; BAUDRATE_TEST

          ; First do a 'range-detection measurement' to find
          ; a suitable prescaler ratio. Worst-case-estimation:
          ; 50 MHz at the input of the async TIMER 0 prescaler
          ; requires a prescaler ratio of 64 because
          ; the synchron counter in TIMER 0 accepts a maximum
          ; frequency of f_osc / 4, here: max. 1 MHz.
          ; The theoretic maximum frequency is 64 MHz then, which
          ; was almost reached when tested with a PIC 16F628 .
          ; The range-detection interval is somewhere near 1/30 seconds (see RANGE_DET_LOOPS),
          ; so frequencies below 30*64 = 1920 Hz are not detectable at this step.
RANGE_DET_LOOPS equ  CLOCK/(.30*CYCLES) ; number of gate-time loops to detect the MEASURING RANGE
                                        ; (which is required to find a good prescaler value)
          movlw (RANGE_DET_LOOPS)>>8    ; high byte for RANGE DETECTION loop counter
          movwf gatecnt_hi
          movlw (RANGE_DET_LOOPS)&0ffh  ; low byte for RANGE DETECTION loop counter
          movwf gatecnt_lo
          movlw PSC_DIV_BY_64           ; let the prescaler divide by 64 while testing..
          call  SetPrescaler            ; safely write <W> into option register

          call count_pulses             ; count pulses for the range detection interval (1/16 sec)
           ; The result will be placed in freq_lo,freq_ml,freq_mh,freq_hi (32 bit)
           ; but the max count at 64 MHz input, 1/30 sec gate time, and prescaler=64 will be :
           ;   64MHz / (30 * 64) = 33333 pulses, so only 16 bits in the counter
           ;  are required here (call them "testcount", f_in = testcount * 30*64) .
           ; The frequency resolution of this coarse measurement is 64*16 Hz = roughly 1 kHz.
           ; (for that reason it's not suited for "wake-up from power-save on frequency-change")

#if 0  ; TEST auto ranging
          movlw (.8500)>>8   ; high byte of counted pulses
          movwf freq_ml
          movlw (.8500)&0ffh ; low byte of counted pulses
          movwf freq_lo
#endif ; end TEST

          ; Load the default (soft-)counters for the GATE TIME.
          ; Most measuring ranges use a 1/4 second gate time !
          movlw (GATE_TIME_LOOPS/4)>>8   ; high byte of gate time
          movwf gatecnt_hi
          movlw (GATE_TIME_LOOPS/4)&0ffh ; low byte of gate time
          movwf gatecnt_lo


          ; Increment the "blinker" once every 0.25 seconds.
          ;  (if the gate time is longer, flashing will be slower, that's acceptable)
          incf  blinker, f
          incf  psave_timer, f     ; increment the power-save timer every 0.25 seconds too (checked somewhere else)

          ; Look at the range-detection count ("testcount")
          ; and decide which measuring range to use, beginning with the highest frequency range
#if (DISP_VARIANT==1)
           ; Ranges FOR VARIANT 1,  4 MHz CRYSTAL (low-power variant, less resolution at HF !)
           ; Rng  testcount    f_in            prescaler gate_time   display,   resolution
           ; (1)     0..6         0.. 11.5 kHz   1       1   second  X.XXXkHz,  0.001kHz (4 digits only)
           ; (2)     7..54         ..103.6 kHz   1       1/2 second  XX.XXXkHz, 0.002kHz (last digit steps by 2)
           ; (3)    55..511        ..981.1 kHz   1       1/4 second  XXX.XXkHz, 0.004kHz (last digit steps by 1)
           ; (4)   512..1023       ..  1.9 MHz   2       1/4 second  XXX.XXkHz, 0.008kHz (last digit steps by 1)
           ; (5)  1024..2047       ..  3.9 MHz   4       1/4 second  X.XXXXMHz, 0.016kHz (last digit steps by 1)
           ; (6)  2048..4095       ..  7.9 MHz   8       1/4 second  X.XXXXMHz, 0.032kHz (last digit steps by 1)
           ; (7)  4096..8191      ... 15.7 MHz  16       1/4 second  X.XXXXMHz, 0.064kHz (last digit steps by 1)
           ; (8)  8192..16383     ... 31.4 MHz  32       1/4 second  X.XXXXMHz, 0.128kHz (last digit steps by 1 or 2)
           ; (9) 16384..33300     ... 63.9 MHz  64       1/4 second  XX.XXXMHz, 0.256kHz (last digit steps by 1)

          movfw freq_ml        ; first look at bits 15..8 of the 'test count' result
          andlw b'11000000'    ; any of bits 15..14 set (>=16384) -> no Z flag -> range 9
          btfss STATUS,Z       ; skip next instruction if ZERO-flag set (!)
          goto  Range9         ; far jump to range 9
          btfsc freq_ml,5      ; bit 13 set (>=8192) ->  range 8
          goto  Range8
          btfsc freq_ml,4      ; bit 12 set (>=4096) ->  range 7
          goto  Range7
          btfsc freq_ml,3      ; bit 11 set (>=2048) ->  range 6
          goto  Range6
          btfsc freq_ml,2      ; bit 10 set (>=1024) ->  range 5
          goto  Range5
          btfsc freq_ml,1      ; bit 9 set (>=512)   ->  range 4
          goto  Range4
          btfsc freq_ml,0      ; bit 8 set (>=256) -> no Z flag  -> range 3
          goto  Range3
          movfw freq_lo        ; now look at bits 7..0 only ..
          sublw .54            ; subtract #54 - W register -> C=0 if result negative
          btfss STATUS,C       ; skip next instruction if C=1 (#54-W >= 0)
          goto  Range3         ; freq > 100kHz -> also range 3
          movfw freq_lo        ; look at bits 7..0 again ..
          sublw .5             ; subtract #5 - W register -> C=0 if result negative
          btfss STATUS,C       ; skip next instruction if C=1
          goto  Range2         ; freq > 10kHz -> range 2
          goto  Range1         ; otherwise range 1
#endif ; end of specific range-switching for  DISPLAY VARIANT #1

#if (DISP_VARIANT==2) || (DISP_VARIANT==3)
           ; Ranges FOR VARIANT 2+3,  20 MHz CRYSTAL (draws more power, but gives better resolution at HF )
           ; Even if PIC clocked with 20MHz, keep the input of TIMER0 below 4(!) MHz .
           ; Rng  testcount    f_in            prescaler gate_time   display,   resolution
           ; (1)     0..6         0.. 11.5 kHz   1       1   second  X.XXXkHz,  0.001kHz (4 digits only)
           ; (2)     7..54         ..103.6 kHz   1       1/2 second  XX.XXXkHz, 0.002kHz (last digit steps by 2)
           ; (3)    44..2047       ..  3.9 MHz   1       1/4 second  X.XXXXMHz,    4 Hz  (last digit steps by 1)
           ; (4)  2048..4095       ..  7.9 MHz   2       1/4 second  X.XXXXMHz,    8 Hz  (last digit steps by 1)
           ; (5)  4096..8191      ... 15.7 MHz   4       1/4 second  X.XXXXMHz,   16 Hz  (last digit steps by 1)
           ; (6)  8192..16383     ... 31.4 MHz   8       1/4 second  X.XXXXMHz,   32 Hz  (last digit steps by 1 or 2)
           ; (7) 16384..33330     ... 63.9 MHz  16       1/4 second  XX.XXXMHz,   64 Hz  (last digit steps by 1)
          movfw freq_ml        ; first look at bits 15..8 of the 'test count' result
          andlw b'11000000'    ; any of bits 15..14 set (>=16384) -> no Z flag -> range 7
          btfss STATUS,Z       ; skip next instruction if ZERO-flag set (!)
          goto  Range7         ; far jump to range 7
          btfsc freq_ml,5      ; bit 13 set (>=8192) ->  range 6
          goto  Range6
          btfsc freq_ml,4      ; bit 12 set (>=4096) ->  range 5
          goto  Range5
          btfsc freq_ml,3      ; bit 11 set (>=2048) ->  range 4
          goto  Range4
          btfsc freq_ml,2      ; bit 10 set (>=1024) ->  range 3
          goto  Range3
          btfsc freq_ml,1      ; bit 9 set (>=512)   ->  range 3
          goto  Range3
          btfsc freq_ml,0      ; bit 8 set (>=256) -> no Z flag  -> range 3
          goto  Range3
          movfw freq_lo        ; now look at bits 7..0 only ..
          sublw .54            ; subtract #54 - W register -> C=0 if result negative
          btfss STATUS,C       ; skip next instruction if C=1 (#54-W >= 0)
          goto  Range3         ; freq > 100kHz -> also range 3
          movfw freq_lo        ; look at bits 7..0 again ..
          sublw .5             ; subtract #5 - W register -> C=0 if result negative
          btfss STATUS,C       ; skip next instruction if C=1
          goto  Range2         ; freq > 10kHz -> range 2
          goto  Range1         ; otherwise range 1 (lowest frequencies)
#endif ; end of specific range-switching for  DISPLAY VARIANT #2

Range1:   ; Range 1:  async prescaler off, 1 second gate time for very low frequencies  :
          call  PrescalerOff             ; turn hardware prescaler off
          incf  psave_timer, f           ; increment power-save timer three more times
          incf  psave_timer, f           ;  (1 sec-gate instead of 0.25)
          incf  psave_timer, f
          ; Load the GATE TIMER (as count of loops) for this measuring range.
          movlw (GATE_TIME_LOOPS)>>8     ; high byte for 1 second gate time
          movwf gatecnt_hi
          movlw (GATE_TIME_LOOPS)&0ffh   ; low byte for 1 second gate time
          movwf gatecnt_lo
          ; Load the count of "left shifts" to compensate gate time + prescaler :
          movlw 0   ; no need to multiply with prescaler 1:1 and 1-sec gate time
          goto  GoMeasure

Range2:   ; Range 2:  async prescaler off, 1/2 second gate time for quite low frequencies  :
          call  PrescalerOff             ; turn hardware prescaler off
          incf  psave_timer, f           ; increment power-save timer one more time (0.5 sec-gate instead of 0.25)
          ; Load the GATE TIMER (as count of loops) for this measuring range.
          movlw (GATE_TIME_LOOPS/2)>>8   ; high byte for 1/2 second gate time
          movwf gatecnt_hi
          movlw (GATE_TIME_LOOPS/2)&0ffh ; low byte for 1/2 second gate time
          movwf gatecnt_lo
          ; Load the count of "left shifts" to compensate gate time + prescaler :
          movlw 1   ; multiply by 2 (=2^1) later to compensate gate time (1/2 s)
          goto  GoMeasure

Range3:   ; Range 3: async prescaler off, gate time = default (1/4 sec) :
          call  PrescalerOff             ; turn hardware prescaler off
          movlw 2   ; multiply by 4 (=2^2) later to compensate gate time (1/4 s)
          goto  GoMeasure

Range4:   ; Range 4: prescaler divide by 2 , gate time = default (1/4 sec) :
          movlw PSC_DIV_BY_2            ; let the prescaler divide by 2 while MEASURING...
          call  SetPrescaler            ; safely write <W> into option register
          movlw 3   ; multiply by 8 (=2^3) later to compensate prescaling (1:2) * gate time (1/4 s)
          goto  GoMeasure

Range5:   ; Range 5: prescaler divide by 4 , gate time = default (1/4 sec) :
          movlw PSC_DIV_BY_4            ; let the prescaler divide by 2 while MEASURING...
          call  SetPrescaler            ; safely write <W> into option register
          movlw 4   ; multiply by 16 (=2^4) later to compensate prescaling (1:4) * gate time (1/4 s)
          goto  GoMeasure

Range6:   ; Range 6: prescaler divide by 8 , gate time = default (1/4 sec) :
          movlw PSC_DIV_BY_8            ; let the prescaler divide by 2 while MEASURING...
          call  SetPrescaler            ; safely write <W> into option register
          movlw 5   ; multiply by 32 (=2^5) later to compensate prescaling (1:8) * gate time (1/4 s)
          goto  GoMeasure

Range7:   ; Range 7: prescaler divide by 16 , gate time = default (1/4 sec) :
          movlw PSC_DIV_BY_16           ; let the prescaler divide by 2 while MEASURING...
          call  SetPrescaler            ; safely write <W> into option register
          movlw 6   ; multiply by 64 (=2^6) later to compensate prescaling (1:16) * gate time (1/4 s)
          goto  GoMeasure

#if (DISP_VARIANT==1)   ; Ranges 8 + 9  are only needed for VARIANT 1  with 4-MHz crystal :
Range8:   ; Range 8: prescaler divide by 32 , gate time = default (1/4 sec) :
          movlw PSC_DIV_BY_32           ; let the prescaler divide by 2 while MEASURING...
          call  SetPrescaler            ; safely write <W> into option register
          movlw 7   ; multiply by 128 (=2^7) later to compensate prescaling (1:32) * gate time (1/4 s)
          goto  GoMeasure

Range9:   ; Range 9: prescaler divide by 64 , gate time = default (1/4 sec) :
          movlw PSC_DIV_BY_64           ; let the prescaler divide by 2 while MEASURING...
          call  SetPrescaler            ; safely write <W> into option register
          movlw 8   ; multiply by 256 (=2^8) later to compensate prescaling (1:64) * gate time (1/4 s)
          goto  GoMeasure
#endif  ; (DISP_VARIANT==1)


GoMeasure: movwf adjust_shifts         ; save the number of "arithmetic left shifts" for later
          call count_pulses            ; count pulses for 1, 1/2, or 1/8 s .
          ; Result in freq_lo,freq_ml,freq_mh,freq_hi (32 bit) now,
          ; NOT adjusted for the gate-time or prescaler division ratio yet.


          ;----------------- Power-saving mode ------------------------------------
          ; Power-saving mode enabled or about to be activated ?
          btfss  OPT_PWRSAVE           ; Power-save mode enabled (from config) ?
          goto   PsNotBlanked
          ; Arrived here: power-saving is ENABLED through the config,
          ;               but not necessarily ACTIVE at the moment .
          ; If power-save is already active, clear the display (may have 'flashed up')
          btfsc  PSFLAG_ACTIVE         ; if power-save already 'ACTIVE'..
          call   ClearDisplay          ; then clear the display (latch)
          ; Next: Check if the frequency has changed significantly
          ; since the last 'reload' of the power-save timer.
          ; To keep things simple, only look at the LOW BYTES of the
          ; 'current' and the 'old' frequency reading at this stage
          ; (BEFORE multiplying the result with two power adjust_shifts) .
          ; 'psave_freq_lo' is an "old" reading; 'freq_lo' the current frequency.
          ; Both are UNSIGNED 8-bit values !
          movfw freq_lo                ; get low-byte of current frequency
          subwf psave_freq_lo, w       ; W := freq_lo - psave_freq_lo
          ; Make the difference (new minus old frequency in W) positive :
          movwf bTemp                  ; bTemp := (freq_lo - psave_freq_lo)
          btfss bTemp,7                ; check the sign-bit (=MSB)
          goto  PsDiffPos              ; difference already posivite, else :
          comf  bTemp,f                ; bTemp := ~bTemp (for example, 0xFF -> 0x00)
          incf  bTemp,f                ; add one for two's complement
PsDiffPos:; Arrived here: difference made positive, i.e.  bTemp = abs(freq_lo - psave_freq_lo) .
          ; If the frequency-difference is 'quite high',
          ;   turn off the flag PSFLAG_ACTIVE  and clear the power-save-timer:
          movfw bTemp                  ; W := abs(freq_lo - psave_freq_lo)
          sublw PSAVE_MAX_DIFF         ; W := PSAVE_MAX_DIFF - W  ; C=0 if result negative (=large f-diff)
          btfsc STATUS,C               ; skip next instruction if large frequency difference
          goto  PsSmallDiff            ;
PsLargeDiff: ; Arrived here: there's a LARGE difference between 'current' and 'old' frequency
          bcf    PSFLAG_ACTIVE         ; Back to normal display mode
          clrf   psave_timer           ; restart 'power-save' activation timer (with display ON)
          movfw  freq_lo               ; set 'current' frequency as new 'old' frequency...
          movwf  psave_freq_lo         ; for the next XX-second interval !
          goto   PsNotBlanked
PsSmallDiff: ; Arrived here: there's only a SMALL difference between 'current' and 'old' frequency .
          btfsc  PSFLAG_ACTIVE         ; power-save already 'ACTIVE' ?
          goto   PsActive              ; yes, already active -> check for flash-up
          ; Check the power-save timer; it may be time to turn the display OFF now :
          movfw  psave_timer           ; if(psave_timer > PSAVE_DELAY_TIME ) ...
          sublw  PSAVE_DELAY_TIME      ; subtract #PSAVE_DELAY_TIME - W -> C=0 if result negative
          btfsc  STATUS,C              ; skip next instruction if carry=0 (PSAVE_DELAY_TIME-W < 0)
          goto   PsNoTimeout           ; psave_timer still low, no 'timeout' yet !
          ; Arrived here: Display was on, but almost no change in frequency -> enter power-saving mode
          movlw  PSAVE_FLASHUP_TIME-1  ; let display flash up once before turning off
          movwf  psave_timer           ; ... to avoid overflow when incrementing it later
          bsf    PSFLAG_ACTIVE         ; set the flag 'power-save ACTIVE' to blank the display
          movfw  freq_lo               ; save low-byte of frequency when ENTERING power-save mode
          movwf  psave_freq_lo
          goto   PsSleep               ; sleep for the first 600-millisecond-interval now

PsActive: ; Here if power-saving mode already active .
          ; Check it it's time to let the display flash up for a short time
          ; to show the operator we're still alive !
          movfw  psave_timer           ; if(psave_timer > PSAVE_DELAY_TIME ) ...
          sublw  PSAVE_FLASHUP_TIME    ; subtract #PSAVE_FLASHUP_TIME - W -> C=0 if result negative
          btfsc  STATUS,C              ; skip next instruction if (PSAVE_FLASHUP_TIME-psave_timer) < 0
          goto   PsSleep               ; psave_timer still low, don't 'flash up' yet !
PsFlashUp: clrf  psave_timer           ; prepare timer for next period of darkness
          movfw  freq_lo               ; avoid turning the display on ..
          movwf  psave_freq_lo         ;   .. if the VFO is only "slowly creeping"
          clrf   psave_timer           ; restart 'power-save' activation timer (with display OFF)
          goto   PsNotBlanked          ; and let the display flash up for one gate interval

PsNoTimeout: ; small frequency difference, AND psave_timer still low..
          ; Already in "power-save"-mode or normal display ?
          btfss  PSFLAG_ACTIVE         ; check the flag 'power-save ACTIVE'
          goto   PsNotBlanked          ; not set -> normal display (not blanked)
          ; Arrived here: 'Saving power', which means the display
          ;   is blanked MOST of the time (but it may flash up every XX seconds
          ;   to show the operator we're still alive) .
PsSleep:  call   Sleep150ms            ; put CPU to sleep for ~500 milliseconds..
          call   Sleep150ms
          call   Sleep150ms
          goto   CheckProgMode         ; skip integer->BCD conversion (save power)

PsNotBlanked: ; Display is not blanked for power-saving mode at the moment.
          ; If this 'absolute difference' is quite large,
          ; clear the power-save timer to prevent turning off the display
          ; within the next XX seconds :
          ; Reload the power-save-timer if there was a significant change
          ; since the last comparison.



PrepDisp: ; Prepare the frequency (32-bit 'unadjusted' integer) for display:
          ; Multiply freq by 2^adjust_shifts to adjust for the prescaling

; WQS 2 frequency in Hz here

          ; and the timing period .  The result will be a frequency in HERTZ, 32-bit integer.

          ; Note: the adjustment factor may be ONE which means no shift at all.
          tstf  adjust_shifts
          bz    NoAdjust
Adjust:   clrc
          rlf freq_lo , f
          rlf freq_ml , f
          rlf freq_mh , f
          rlf freq_hi , f
          decfsz adjust_shifts, f
          goto Adjust
NoAdjust:

; WAS 3

          ; Check the result against under- and overflow.
          ; (There should be none if the frequency didn't change too rapidly
          ;  between the range-detection and the actual measurement )
          movfw freq_hi                 ; underflow (freq = 0) ?
          iorwf freq_mh,w
          iorwf freq_ml,w
          iorwf freq_lo,w

#ifndef RS232_OUT
; WAS this causes print to skip
          bz freq_underflow             ; branch if yes
#endif
; ! RS232_OUT
          btfsc freq_hi,7               ; overflow (freq > 7FFfffffh) ?
          goto freq_overflow            ; branch if yes

; WAS 4
; freq in freq_hi, freq_mh, freq_ml, freq_lo ????
; 32 bit binary to BCD, display?


         ; Save the frequency value without offset for programming mode in 'freq2',
         ;   because 'freq' will be lost when splitting it into digits.
          movfw freq_hi
          movwf freq2_hi
          movfw freq_mh
          movwf freq2_mh
          movfw freq_ml
          movwf freq2_ml
          movfw freq_lo
          movwf freq2_lo

         ; Add the programmable frequency offset
         ; (often used to add or subtract the intermediate frequency in superhet receivers)
          add32 freq, foffs             ; freq := freq+foffs;  32-bit

         ; If the result is negative, make it posisive
          btfss freq_hi, 7              ; bit 7 of the most significant byte is the SIGN
          goto  f_positive              ; skip the following MACRO if positive..
          neg32 freq                    ; freq := -freq  (32-bit)
f_positive:
          call  CvtAndDisplayFreq       ; Convert <freq> into BCD and show it on the display

CheckProgMode:
          ; Arrived here, the frequency is still valid in 'freq2'
          ;   but not in 'freq'.  Poll the programming key,
          ;   maybe the user wants to save this value as the new
          ;   FREQUENCY OFFSET .

#ifdef RS232_OUT
; no prog loop in RS232_OUT, no offset, just a frequency counter.
		goto	MainLoop
#endif
; RS232_out

#if(DEBUG==0)
          btfss   IOP_PROG_MODE        ; Button "program mode" pressed ?
          goto    EnterProgLoop        ;  Yes, enter programming mode !
#endif ; not DEBUG

          goto MainLoop                ; end of main loop


;--------------------------------------------------------------------------
; frequency underflow (frequency < 1Hz)
;--------------------------------------------------------------------------

freq_underflow:
          movlw BLANK                   ; display underflow as "   0[0]"
          call conv_char0
          movlw BLANK
          call conv_char1
          movlw BLANK
          call conv_char2
          movlw 0                       ; why not 'zero' in the last digit ?
          call conv_char3
          movlw BLANK
          call conv_char4               ; because the 5th digit is OPTIONAL !

          goto CheckProgMode


;--------------------------------------------------------------------------
; frequency overflow (frequency > 50MHz)
;--------------------------------------------------------------------------

freq_overflow:
          movlw  BLANK                   ; display overflow as "   E"
          call   conv_char0
          movlw  BLANK
          call   conv_char1
          movlw  BLANK
          call   conv_char2
          movlw  CHAR_E
          call   conv_char3
          movlw  BLANK
          call   conv_char4               ; Note that the 5th digit is OPTIONAL !


          goto MainLoop   ; end of main loop



;--------------------------------------------------------------------------
; program loop :
;  - show a simple menu to select ADD or SUBTRACT offset,
;  - save the frequency offset value permanently in DATA EEPROM,
;  - return to the main loop when done .
;--------------------------------------------------------------------------

ProgModeDisplay   ; Subroutine to update the LED display in programming mode + delay
          movlw (PROGMODE_LOOPS)>>8     ; high byte for delay loops (usually 0.1 second)
          movwf  gatecnt_hi
          movlw (PROGMODE_LOOPS)&0ffh   ; low byte for delay loops
          movwf  gatecnt_lo
          goto   count_pulses   ; update mux display + some delay + return

PmDisp_Quit: ; show "quit" on first 4 digits (quit programming mode)
          movlw  CHAR_Q
          call   conv_char0
          movlw  CHAR_u
          call   conv_char1
          movlw  CHAR_i
          call   conv_char2
          movlw  CHAR_t
PmDisp4:  call   conv_char3      ; for menu items with 4 characters
          movlw  BLANK
PmDisp5:  call   conv_char4
          goto   ProgModeDisplay

PmDisp_PSave: ; show "PSave" or "Pnorm", depending on power-save flag
          btfss  OPT_PWRSAVE    ; Power-save mode active ?
          goto   PMD_NoPwSave
          movlw  CHAR_P         ; if so, print "PSAVE"..
          call   conv_char0
          movlw  CHAR_S
          call   conv_char1
          movlw  CHAR_A
          call   conv_char2
          movlw  CHAR_V
          call   conv_char3
          movlw  CHAR_E
          goto   PmDisp5
PMD_NoPwSave:                   ; else print "NoPSV"
          movlw  CHAR_N
          call   conv_char0
          movlw  CHAR_o
          call   conv_char1
          movlw  CHAR_P
          call   conv_char2
          movlw  CHAR_S
          call   conv_char3
          movlw  CHAR_V
          goto   PmDisp5

PmDisp_Add:  ; show "Add " on first 4 digits (add frequency offset)
          movlw  CHAR_A
          call   conv_char0
          movlw  CHAR_d
          call   conv_char1
          movlw  CHAR_d
          call   conv_char2
          movlw  BLANK
          goto   PmDisp4
PmDisp_Sub:  ; show "Sub " on first 4 digits (subtract frequency offset)
          movlw  CHAR_S
          call   conv_char0
          movlw  CHAR_u
          call   conv_char1
          movlw  CHAR_b
          call   conv_char2
          movlw  BLANK
          goto   PmDisp4
PmDisp_Zero: ; show "Zero" on first 4 digits (set frequency offset to zero)
          movlw  CHAR_Z
          call   conv_char0
          movlw  CHAR_E
          call   conv_char1
          movlw  CHAR_r
          call   conv_char2
          movlw  CHAR_o
          goto   PmDisp4
PmDisp_StIF: ; show "taBLE" on first 4 digits (select standard IF)
          movlw  CHAR_t
          call   conv_char0
          movlw  CHAR_A
          call   conv_char1
          movlw  CHAR_b
          call   conv_char2
          movlw  CHAR_L
          call   conv_char3
          movlw  CHAR_E
          call   conv_char4
          goto   ProgModeDisplay
PmDisp_IF_1: ; show 1st standard IF from table
          movlw  EEPROM_ADR_STD_IF_TABLE + 4*0
          goto   PmLoadFreq2
PmDisp_IF_2: ; show 2nd standard IF from table
          movlw  EEPROM_ADR_STD_IF_TABLE + 4*1
          goto   PmLoadFreq2
PmDisp_IF_3: ; show 3rd standard IF from table
          movlw  EEPROM_ADR_STD_IF_TABLE + 4*2
          goto   PmLoadFreq2
PmDisp_IF_4: ; show 4th standard IF from table
          movlw  EEPROM_ADR_STD_IF_TABLE + 4*3
          goto   PmLoadFreq2
PmDisp_IF_5: ; show 5th standard IF from table
          movlw  EEPROM_ADR_STD_IF_TABLE + 4*4
          goto   PmLoadFreq2
PmLoadFreq2: ; Load <freq2> from EEPROM[w] and show it on the display
          movwf  bTemp
          movlw  freq2          ; load the ADDRESS of 'freq2' ...
          movwf  FSR            ; ... into the PIC's "pointer" register
          movfw  bTemp          ; and the EEPROM-internal offset into W
          call  EEPROM_Read4Byte  ; read <freq2> from EEPROM : *FSR = EEPROM[W]
          movlw  freq2          ; load the ADDRESS of 'freq2' again ...
          movwf  FSR            ; ... into the PIC's "pointer" register
          call   ShowInt32_FSR    ; Splitt <*FSR> (32 bit integer) to 8 BCD-digits...
          goto   ProgModeDisplay  ; and show it for 0.1 seconds, maybe more


; "Execution" of the selectable menu items. Invoked after long key press.
PmExec_Quit:  ; quit programming mode (without changing anything)
          goto   MainRestart

PmExec_PSave: ; turn power-saving mode on/off
          movlw  0x01           ; bit0 = power-save
          xorwf  options,f      ; toggle Power-save flag in sofware-"options" register
          movlw  options        ; load the ADDRESS of 'options' ...
          movwf  FSR            ; ... into the PIC's "pointer" register
          movlw  EEPROM_ADR_OPTIONS ; load the EEPROM-internal address offset (=destination)
          call   SaveInEEPROM   ; write *FSR into EEPROM[w]     (bits 31..24)
          goto   ProgModeDisplay

PmExec_Add:  ; add frequency offset from now on .
             ; This is achieved by saving the currently measured frequency
             ; in EEPROM memory and restarting the counter.
SaveFreq2:   ; save <freq2> (4 bytes) in the PIC's EEPROM memory :
          movlw  freq2          ; load the ADDRESS of 'freq2' ...
          movwf  FSR            ; ... into the PIC's "pointer" register
          movlw  EEPROM_ADR_FREQ_OFFSET ; load the EEPROM-internal address offset (=destination)
          call   SaveInEEPROM   ; write *FSR into EEPROM[w]     (bits 31..24)
          incf   FSR, f         ; next source address please
          movlw  EEPROM_ADR_FREQ_OFFSET+1 ; next destination address
          call   SaveInEEPROM   ; write *FSR into EEPROM[w]     (bits 23..16)
          incf   FSR, f         ; next source address please
          movlw  EEPROM_ADR_FREQ_OFFSET+2 ; next destination address
          call   SaveInEEPROM   ; write *FSR into EEPROM[w]     (bits 15..8)
          incf   FSR, f         ; next source address please
          movlw  EEPROM_ADR_FREQ_OFFSET+3 ; next destination address
          call   SaveInEEPROM   ; write *FSR into EEPROM[w]     (bits 7..0)
          goto   MainRestart    ; restart with new frequency offset

PmExec_Sub: ; subtract frequency offset from now on
            ; This is achieved by making 'freq2' negative (two's complement)
            ; and then saving it in EEPROM.
          neg32  freq2          ; freq2 := -freq2  (32 bit)
          goto   SaveFreq2      ; save freq2 in EEPROM and restart

PmExec_Zero: ; set frequency offset to zero
          clrf   freq2_hi       ; freq2 := 0       (32 bit)
          clrf   freq2_mh       ; ... medium high byte
          clrf   freq2_ml       ; ... medium low byte
          clrf   freq2_lo       ; ... low byte
          goto   SaveFreq2      ; save freq2 in EEPROM and restart
PmExec_StIF   ; switch to  "Standard IF selection mode"
          movlw  MI_IF_1
PmExec_SetMI: movwf  menu_index
          goto   ProgLoop       ;

PmExec_SelIF  ; Finished selecting a "standard IF" from table.
              ; Switch back to the main menu, and let
              ; the user decide if the offset is positive (add)
              ; or negative (sub).
          movlw  MI_ADD         ; Suggestion: ADD the offset
          goto   PmExec_SetMI


EnterProgLoop:
       ; Prepare 'program mode' :
          clrf   menu_index

       ; Show "Prog" on the display
          movlw  CHAR_P
          call   conv_char0
          movlw  CHAR_r
          call   conv_char1      ; show "Prog" on the display..
          movlw  CHAR_o
          call   conv_char2
          movlw  CHAR_G
          call   conv_char3
          movlw  BLANK           ; Note that the 5th digit is OPTIONAL so we don't use it here
          call   conv_char4
          ; wait until the operator releases the "Prog" key, while display runs
Enter2:   call   ProgModeDisplay ; update mux display + provide some delay
          btfss  IOP_PROG_MODE   ; Button "program mode" still pressed ?
          goto   Enter2          ; yes, continue loop while displaying "Prog"


ProgLoop:
          incf  blinker, f       ; Toggle the blink flag (for flashing for kHz-point)
       ; Show "quit", "add", "sub", "zero", ... on the display depending on menu_index (0..3)
          call   PMDisplay       ; show  string[menu_index] on LED display (from table)
          btfsc  IOP_PROG_MODE   ; "program key" pressed now ? (low means pressed)
          goto   ProgLoop        ; no, wait until user presses it
       ; Arrived here, the key is PRESSED. The question is how long...
       ;  A short press means "advance to the next menu index" ,
       ;  a longer press means "execute the selected function" .
       ; Everything under 1 second is considered a "short press".
          movlw  .10             ; 10 * 0.1 sec
          movwf  menu_timer
ChkKey:   btfsc  IOP_PROG_MODE   ; "program key" still pressed ? (low means pressed)
          goto   ShortPress      ; no, key released, it was a SHORT press (less than 0.5 seconds)
          call   ProgModeDisplay ; wait another 100 milliseconds
          decfsz menu_timer, f   ; decrement timer and skip next instruction if NOT zero
          goto   ChkKey          ;
        ; Arrived here, it's a LONG key press, but the key is still down..
        ; Wait until the operator releases the "Prog" key
        ;  Show a BLINKING display while the button is pressed,
        ;  as an indicator for the user to release the button now.
Release2: call   ClearDisplay    ; fill display latch with blanking pattern
          call   ProgModeDisplay ; show blank display for 0.1 seconds
          call   PMDisplay       ; show string[menu_index] for 0.1 seconds
          btfss  IOP_PROG_MODE   ; Button "program mode" still pressed ?
          goto   Release2        ; yes, wait for button release, otherwise..
          goto   PMExecute       ; Execute the function belonging to menu_index

ShortPress:  ; advance to the next menu index, but don't execute the associated function
          movfw  menu_index
          sublw  MI_INDEX_MAX    ; subtract #MI_INDEX_MAX - W register -> C=0 if result negative ("W too large")
          btfsc  STATUS,Z        ; skip next instruction if Z=0
          goto   LastMainMenu    ; Z=1 means "this is the last item in the main menu"
          btfss  STATUS,C        ; skip next instruction if C=1
          goto   NotMainMenu     ; C=0 means "this is not the main menu"
          incf   menu_index, f   ; menu_index := menu_index+1
          goto   ProgLoop  ; end of programming loop
LastMainMenu:
          clrf   menu_index      ; wrap to 1st menu index
          goto   ProgLoop
NotMainMenu:   ; not main menu, but sub-menu ..
          movfw  menu_index
          sublw  MI_IF_SUBMENU_MAX ; subtract #MI_.. - W register -> C=0 if result negative ("W too large")
          btfsc  STATUS,Z        ; skip next instruction if Z=0
          goto   LastIfSubMenu   ; Z=1 means "this is the last item in the main menu"
          btfss  STATUS,C        ; skip next instruction if C=1
          goto   NotIfSubMenu    ; C=0 means "this is not the main menu"
          incf   menu_index, f   ; menu_index := menu_index+1  (in submenu)
          goto   ProgLoop        ;
LastIfSubMenu:  ; was in the last "standard IF submenu"..
          movlw  MI_IF_1         ; back to the 1st standard IF submenu
          movwf  menu_index
          goto   ProgLoop
NotIfSubMenu:   ; was not in the "standard IF submenu"..
          clrf   menu_index      ; must be an error; back to main menu
          goto   ProgLoop


  END   ; directive 'end of program'




file: /Techref/microchip/freq2rs232-jp.htm, 114KB, , updated: 2010/4/12 13:30, local time: 2024/10/7 23:56,
TOP NEW HELP FIND:
98.84.18.52:LOG IN
©2024 PLEASE DON'T RIP! THIS SITE CLOSES OCT 28, 2024 SO LONG AND THANKS FOR ALL THE FISH!

 ©2024 These pages are served without commercial sponsorship. (No popup ads, etc...).Bandwidth abuse increases hosting cost forcing sponsorship or shutdown. This server aggressively defends against automated copying for any reason including offline viewing, duplication, etc... Please respect this requirement and DO NOT RIP THIS SITE. Questions?
Please DO link to this page! Digg it! / MAKE!

<A HREF="http://massmind.org/Techref/microchip/freq2rs232-jp.htm"> PIC 16F628 Frequency Counter with RS232 output in a DB9 backshell by Jan Panteltje</A>

After you find an appropriate page, you are invited to your to this massmind site! (posts will be visible only to you before review) Just type a nice message (short messages are blocked as spam) in the box and press the Post button. (HTML welcomed, but not the <A tag: Instead, use the link box to link to another page. A tutorial is available Members can login to post directly, become page editors, and be credited for their posts.


Link? Put it here:
if you want a response, please enter your email address:
Attn spammers: All posts are reviewed before being made visible to anyone other than the poster.
Did you find what you needed?



Welcome to massmind.org!



Welcome to massmind.org!



















































  .
