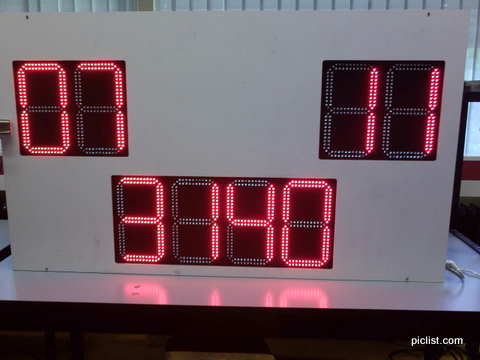

PIC PIC 18F2550 Based Scoreboard

by Jody Wisman

for the Olimex sponsored PCB contest

PIC 18F2550 Based Scoreboard RFM12 radio module. Software in CCS C. PCB in Mentor Graphics.

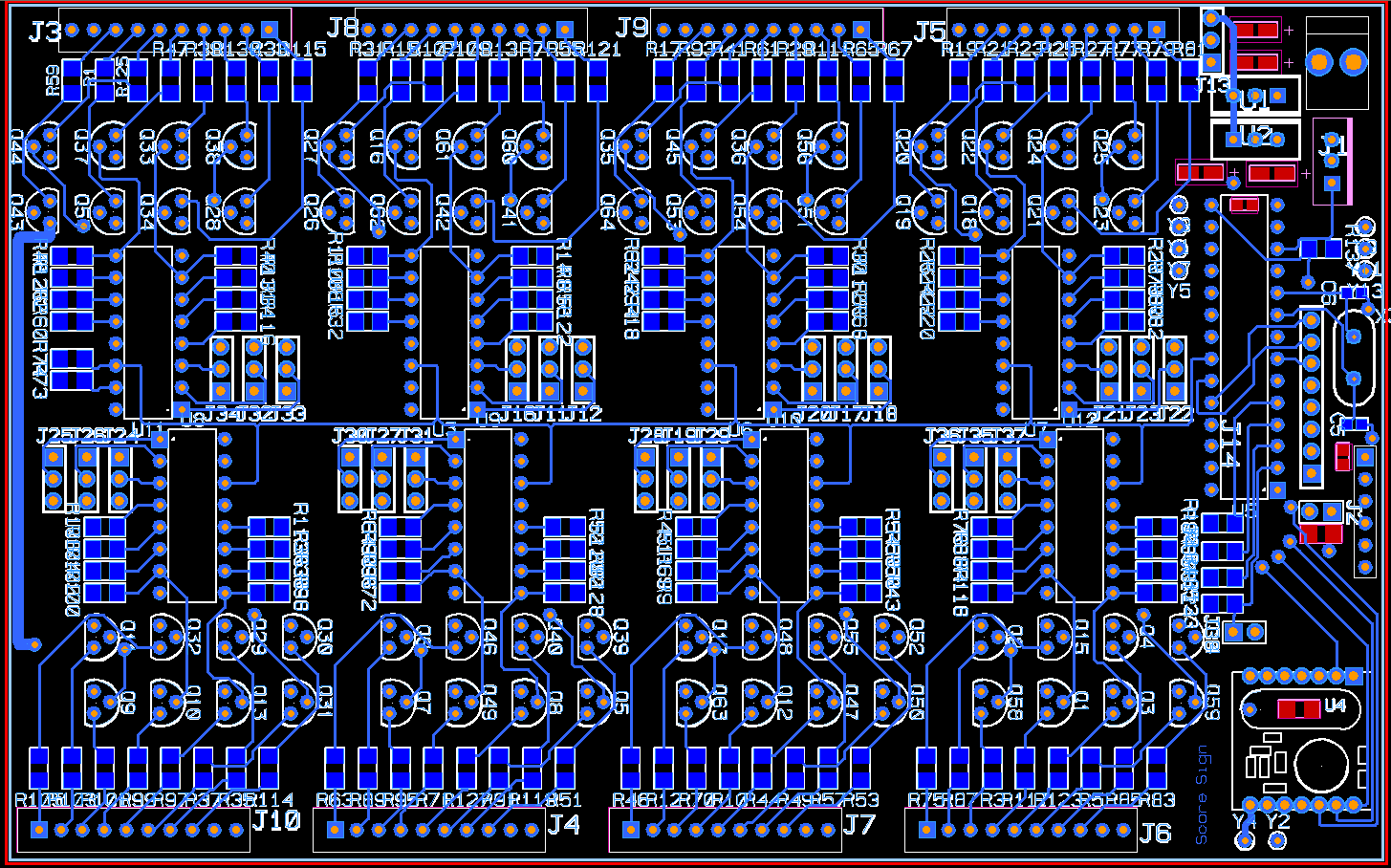

Note: The same driver transistor circuits are repeated to the left and right but the picture has been cropped here to save space.
