PIC PIC18F4550 ETHERNET PICTAIL Motor Control

by Jody Wisman

for the Olimex sponsored PCB contest

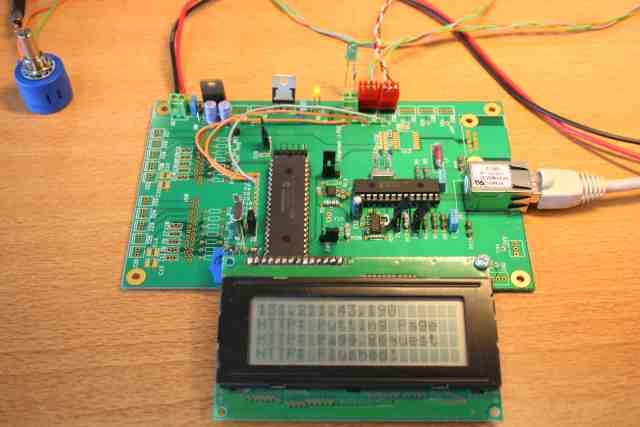

I have designed another one.... Totally based on the ETHERNET PICTAIL daughterboard, whith two extra motor drivers. I build this thing only to go on experimenting with controling steppermotors through ethernet. Placed a PIC18F4550 on the board and the ENC28J60 Ethernet controller.

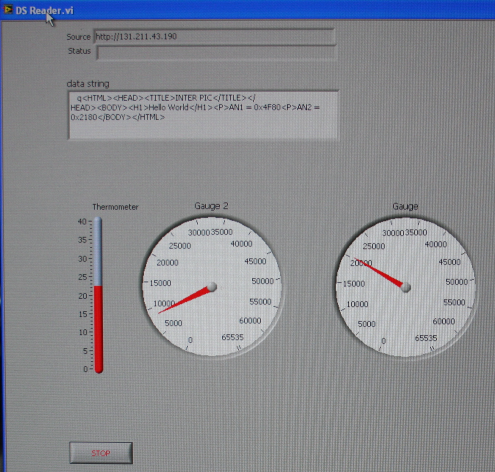

Code (.rar file 1.2M)

Gerbers
