Stabilised power unit

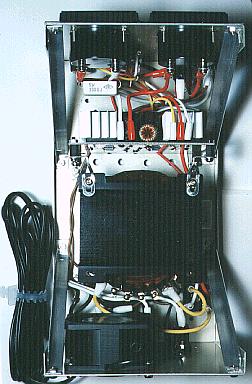

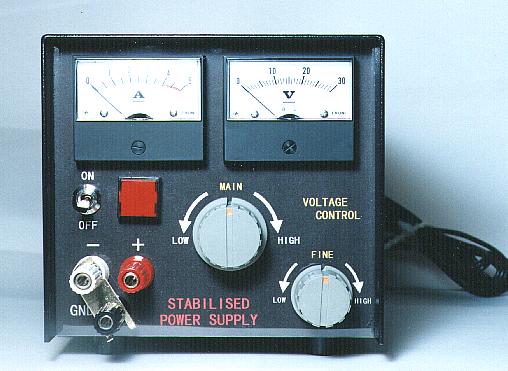

I made the stabilised power unit which used the switching regulator.
AC100 V is used for the input of the power unit. The output voltage can be changed from 5 V to 30 V. The output current can pour a maximum of 4 A. I made this power unit as the power unit of the electronic circuits making for the experiment.

I am posting the making example of the switching regulator in "Electronic Circuit Beans Collection". The one who want to know more about the switching regulator, please refer to it.

	Switching Regulator
	Parts explanation
	Manufacturing process

You can see 3D photo at "3D photograph of the stabilised power unit".
