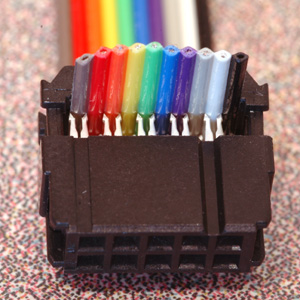

Cabled DIL Header
pins in rows of two on 0.1" spacings along with female
IDC connectors
on ribbon cables are the most commonly used and easiest to find type of PCB
interconnect. Examples include IDE hard drive cables from the motherboard
of a PC to the controller board of the Hard Drive, and the PC end of the
standard floppy controller cable on PC's that actually still have floppy
drives.

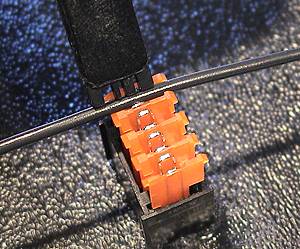

Cabled SIL Headers
exist, for example; the PC end of the cable for the internal PC speaker,
but the cables are harder to make as few IDC version of those connectors
exist and special tools are often required to insert the wire into the terminal
edge. Keywords for finding these connectors are "AMP MTA IDC" or "MOLEX KK
IDC" or "C-GRID IDC" or "Berg IDC"
Another issue is that the spacing of a standard ribbon cable is twice as
dense as the SIL header so individual wires or a special 0.1" pitch
ribbon cable (aka round conductor flat cable) must be used for an IDC connection.

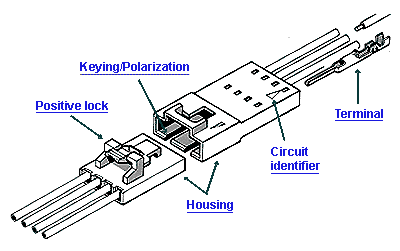

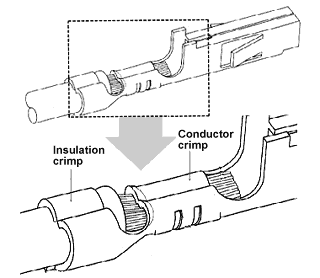

More often, individual wires are crimped to an individual pin or socket terminal
using a special tool and that is inserted into a housing.
There do exist housings with terminal recepticals pre-inserted and with access
for a special crimping press to make entire cables at one pass do exist,
but are apparently impossible to find.
