Driving Bipolar Stepper Motors
Copyright (C) 2000 G. Shearer

Stepper motors are devices, which convert electrical impulses into discrete mechanical rotational movements. In a typical stepper motor, power is applied to two coils. Two stator cups formed around each of these coils, with pole pairs mechanically offset by ½ a pole pitch, become alternately energized North and South magnetic poles. Between the two stator-coil pairs the offset is ¼ of a pole pitch.

The permanent magnet rotor has the same number of pole pairs as the stator coil section. Interaction between the rotor and stator (opposite poles attracting and like poles repelling) causes the rotor to move ¼ of a pole pitch per winding polarity change.

Motors are available in either 2 coil (bipolar) or 4 coil (unipolar) windings. In the unipolar version, the coils are bifilar (two side by side wires) wound on each stator half and opposite ends of each pair are connected together to form a center tapped coil. With this method, the flux is reversed by powering either one end or the other of the bifilar coil pair with the center connected to common. For a bipolar motor, an external device referred to as an H-Bridge can be used to reverse the polarity of the winding and thus the flux. An H-Bridge can also drive a unipolar motor by not connecting the center tap (common) lead or using only one of the windings in the pair.

Unipolar stepper motors require only 4 transistor switches which greatly simplifies the drive circuitry when compared to the 8 transistors required to drive a bipolar motor (dual H-Bridges). However, for unipolar stepper motors to have the same number of turns per winding as a bipolar motor, smaller diameter must be employed so that both windings may fit in the space of one. The resistance increases due to the smaller wire diameter. Due to increased resistance, unipolar stepper motors have 30% less torque at low step rates. At higher step rates, the torque outputs are approximately the same.

For a stepper motor to take one step a four part switching sequence is involved which is commonly referred to as Wave Drive.

In the chart above, + indicates the coil is conducting in the forward direction with one end being positive with respect to ground. The - indicates that the coil is conducting in the opposite direction. Continuing the sequence as outlined above causes the rotor to rotate in a forward direction. Reversing this sequence causes the motor to rotate in the reverse direction. The coils only are required to be energized long enough for the rotor to move to its' next position. If the coil remains energized, it will lock the shaft of the motor and this situation is commonly used for stopping or putting on the brakes. The torque developed in this manner is referred to as the motor's holding torque. Operated at a fixed frequency, the electrical input to the motor appears as a two-phase 90-degree shifted square wave.


The no load or constant load accuracy of a 7.5 degree/step motor is within 0.5% noncumulative. This means that the positioning error is always the same whether the rotational movement is one step or 1000 steps. Since the step error is noncumulative, it averages itself out to zero within a 4-step sequence, which corresponds to 360 electrical degrees. The 4-step sequence uses the same coil, magnetic polarity and flux path. With this in mind, the most accurate method of positioning would be obtained by stepping in multiples of 4.

It is also possible to step the motor according to an 8-part sequence to obtain half steps. For example a motor with a step size of 7.5 degrees/step could be half stepped to obtain motion of 3.75 degrees/step. Applications utilizing this method will suffer a lower holding torque on every other half step since only one winding will be energized. Accuracy will also suffer, as winding and flux conditions are not similar for each ½ step. The half step sequence is listed in the chart below.

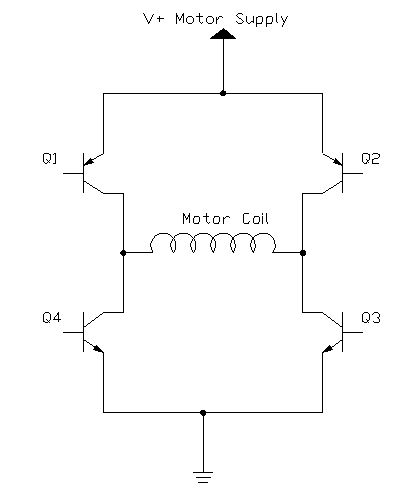

The drawing below depicts a simple H-Bridge. It consists of two pairs of transistors connected to each end of the motor coil. Q1 and Q2 are connected to the positive motor supply source. Q3 and Q4 are connected to ground. By putting a positive voltage on the base of one of the transistors, it will cause the transistor collector/emitter junction to conduct.

By switching transistors Q1 and Q3 on, it will cause current to flow through the motor coil in the forward or + direction. By switching Q2 and Q4 on, it causes current to flow through the motor coil in the reverse or - direction. The logic controlling which transistors are switched must be quite precise as switching transistors Q1 and Q4 or Q2 and Q3 on at the same time will result in shorting the power supply directly to ground which will destroy the transistor pair and possibly the power supply as well.

Logic must be provided to inhibit any programming error, which would result in switching the wrong transistors on at the incorrect time. Additionally, timing circuitry should be employed that the correct transistors are switched on only after the others are switched off. Simply driving the H-Bridge directly from a microcontroller would be ill advised. On power-up, the outputs of many microcontrollers go high momentarily which would instantly destroy an H-Bridge without the proper inhibit circuitry for disallowed conditions.

Whenever an inductor is energized, higher than normal current is drawn while the magnetic field of the coil builds. Conversely, when the inductor is de-energized, the magnetic field in the coil collapses causing a voltage to be induced in the inductor and current to flow in the opposite direction. The reverse current flow may damage the switching transistors in the circuit.

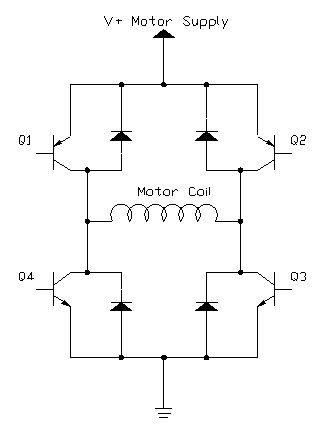

In order to correct the problem with the polarity reversal caused by the falling magnetic field inducing a current in the inductor, snubber diodes are installed. The direction of the diodes is such that during normal operation, the diodes do not conduct. When the falling magnetic field causes reverse current flow, the diodes conduct this current directly to ground and away from the switching transistors. The circuit below depicts a simple H-Bridge with snubber diodes installed.

The Allegro UDN2998 Dual Full Bridge Motor Driver IC handles all of the problems of H-Bridges and incorporates this technology in a single package. Current prices for this chip are less than $7 in single quantities. The UDN2998 features:

3 Amp peak output current
2 Amp continuous current
Output voltage to 50 Volts
Integral output suppression diodes
Output current sensing
TTL / CMOS compatible Inputs
Internal thermal shutdown circuitry
Crossover -Current protection
12 Pin package

Due to the logic circuitry preventing crossover-current protection (switching on the wrong transistors creating a short circuit) each side of the dual bridge has an enable and phase input instead of controlling the switching transistors directly. A truth table is depicted below.

Referring back to the Wave Drive table for half stepping our motor and also the UDN2998 truth table, we can make up a logic table depicting the output for our microcontroller. This table is shown below.

Microcontroller Output Table

Sequenced for Half-Stepping

If you compare the half step and full step tables, you will notice that all of the full step sequences appear somewhere in the half step table, but not in the same order. This information is useful in building a look-up table in your program and not having to duplicate the lines of code that would appear in both half step and full step output sequences.

You can obtain a complete data sheet at www.allegro.com that provides more information about temperature, heat sinking and other modes of operation such as the chopper mode.

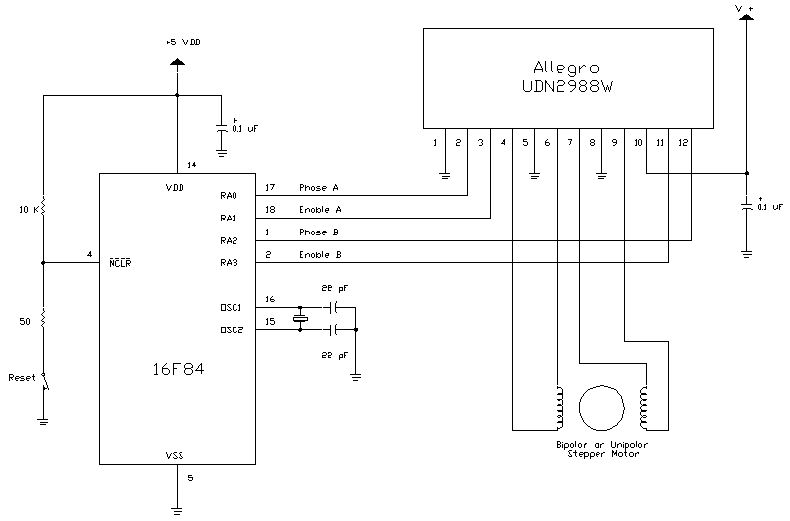

The following schematic diagram shows a circuit, which places what we have discussed into practice. I am using a 16F84 microcontroller in this example, however, any microcontroller which is supported by JAL will work. You will only need to make a few changes in both the circuit and the program to accommodate the changes.

Power for the circuit comes from one or two external power supplies. Operating off a single supply is a bit trickier due to the noise generated by the switching transistors. The 5 volt supply for the microcontroller should be well regulated. It is very important not to omit the two 0.1 uF capacitors shown and they should be placed as close as possible to their respective chips. These are decoupling capacitors and if omitted can cause unreliable operation or the circuit not to function at all. I experienced lack of function without these capacitors when operating from the same power supply and even including a 5 volt regulator for the microcontroller.

Power for the motor should be based on the current and torque requirements for the motor and what kind of load the motor must move. A little experimentation may be in order to find just the right value for the motor supply voltage. Increasing the voltage will increase the motor current and the torque produced while at the same time increasing the heat produced by the UDN2998.

You will notice both a 10 K and a 50 Ohm resistor connected to the reset lead of the microcontroller. You might be able to omit the 50 Ohm resistor. The 10 K resistor pulls the reset lead up to the 5 volt supply, without it, the microcontroller will remain in the reset mode and the circuit will not operate. The 50 ohm resistor is included as recommended by Microchip Technologies in order to prevent the reset pin from going negative when the reset switch is pressed.

The UDN2998 is not the only H-Bridge that is manufactured by Allegro or by other manufacturers. You might select a different chip based on your project requirements. Pins 5 and 8 of the UDN2998 are the ground returns for each side of the H-Bridge. If necessary, you could install current limiting or current sensing resistors at this point. Beware of the wattage rating of any resistors installed here as a motor drawing several Amps at even 12 Volts will require a resistor of considerable wattage to prevent it from burning up.

Following is the JAL library that you will need to include in your program to drive a stepper motor using this configuration.

--
-- Program: bipolib.jal library
--
-- Date: 14 July 2000
--
-- Author: G. Shearer
-- Vanderbilt University
-- Nashville, TN
--
-- Purpose: for driving both bipolar and unipolar stepper motors
-- uses Allegro UDN2998 dual H bridge

-- Copyright (C) 2000 G. Shearer
--
-- This library is free software; you can redistribute it and/or
-- modify it under the terms of the GNU Library General Public
-- License as published by the Free Software Foundation; either
-- version 2 of the License, or (at your option) any later version.
--
-- This library is distributed in the hope that it will be useful,
-- but WITHOUT ANY WARRANTY; without even the implied warranty of
-- MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU
-- Library General Public License for more details.
--
-- You should have received a copy of the GNU Library General Public
-- License along with this library; if not, write to the
-- Free Software Foundation, Inc., 59 Temple Place - Suite 330,
-- Boston, MA 02111-1307, USA.
--

procedure stepout ( byte in seq, byte in speed ) is
-- sends seq nibble to output

if seq == 0 then
port_a = 0b_0001
elsif seq == 1 then
port_a = 0b_1001
elsif seq == 2 then
port_a = 0b_0101
elsif seq == 3 then
port_a = 0b_0110
elsif seq == 4 then
port_a = 0b_0100
elsif seq == 5 then
port_a = 0b_1000
elsif seq == 6 then
port_a = 0b_0000
elsif seq == 7 then
port_a = 0b_0010
else
port_a = 0b_1010
end if
delay_1ms( speed )
end procedure

procedure fullforward ( byte in speed ) is
-- makes one full step in the forward direction

stepout( 1, speed )
stepout( 7, speed )
stepout( 5, speed )
stepout( 3, speed )
end procedure


procedure fullreverse ( byte in speed ) is
-- makes one full step in the reverse direction

stepout( 3, speed )
stepout( 5, speed )
stepout( 7, speed )
stepout( 1, speed )
end procedure

procedure halfstep ( bit in direction, byte in out seq, byte in speed ) is
-- makes one half step in the proper direction and remembers which half step

for 4 loop
if direction == true & seq < 7 then
seq = seq + 1
elsif direction == true & seq == 7 then
seq = 0
elsif direction == false & seq > 0 then
seq = seq - 1
elsif direction == false & seq == 0 then
seq = 7
end if
stepout ( seq, speed )
end loop
end procedure

procedure fullstep ( bit in direction, byte in speed ) is
-- detects forward/reverse direction and calls proper fullstep procedure

if direction == true then fullforward ( speed )
else fullreverse ( speed )
end if
end procedure

I have included a copy of the library file so you will not need to type the whole thing in yourself. This library contains a few procedures, but from a program point of view, you will only need to add the line:

include bipolib

in your program. Every time you wish to have the motor take a full step, include the following line in your program:

fullstep ( direction, speed )

where direction is either true for forward or false for reverse and speed is the number of milliseconds between steps.

For half-stepping, you will need to initialize the step sequence at the beginning of your program. Just add the following line:

var byte seq = 0

which will start half stepping on the first half step. The procedures in the library will then keep track of which half step to take each time it is called. Each time you wish to take a half step, use the following line in your program:

halfstep ( direction, seq, speed )

where direction and speed are exactly the same as for full stepping and seq is the sequence counter used to keep track of which half step to take.

Here is s quick rundown on each of the procedures contained in bipolib.jal

Procedure fullstep
Determines forward / reverse
Calls either fullforward or fullreverse
Passes speed variable

Procedure halfstep
Determines last sequence
Determines forward / reverse
Increments sequence
Calls stepout
Passes sequence and speed variables

Procedure fullforward
Sets sequence
Calls stepout
Passes sequence and speed variables

Procedure fullreverse
Sets sequence
Calls stepout
Passes sequence and speed variables

Procedure stepout
Looks up binary output based on sequence value
Sets port a
Adds delay based on speed


Following is a demonstration program that utilizes bipolib.jal and exercises the stepper motor to prove functionality of the circuit and library.

--
-- Program: biptest.jal
--
-- Date: 13 July 2000
--
-- Author: G. Shearer
-- Vanderbilt University
-- Nashville, TN
--
-- Purpose: Demo program for bipolib.jal
-- ( bipolar stepper motor library)
--
-- Copyright (C) 2000 G. Shearer
--
-- This library is free software; you can redistribute it and/or
-- modify it under the terms of the GNU Library General Public
-- License as published by the Free Software Foundation; either
-- version 2 of the License, or (at your option) any later version.
--
-- This library is distributed in the hope that it will be useful,
-- but WITHOUT ANY WARRANTY; without even the implied warranty of
-- MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU
-- Library General Public License for more details.
--
-- You should have received a copy of the GNU Library General Public
-- License along with this library; if not, write to the
-- Free Software Foundation, Inc., 59 Temple Place - Suite 330,
-- Boston, MA 02111-1307, USA.
--

-- includes
include 16f84_4
include jlib
include bipolib

-- configure ports
port_a_direction = all_output

-- initialize variables
var byte speed = 3
var bit direction = true
var byte seq = 0

-- here da program
forever loop
direction = true
for 100 loop
fullstep ( direction, speed )
end loop
direction = false
for 100 loop
fullstep ( direction, speed )
end loop
direction = true
for 200 loop
halfstep ( direction, seq, speed )
end loop
direction = false
for 200 loop
halfstep ( direction, seq, speed )
end loop
end loop


I believe the demonstration is self-explanatory. I encourage you to experiment with the demonstration program to get a feel of how it operates.

I am certain that some typos or omissions have crept into this explanation so I would be grateful for any corrections to errors you have observed. Please write to me at g.shearer@vanderbilt.edu

I welcome your comments and would be pleased to learn of any projects you have done which utilize the information, circuits, library or demonstration program contained here.
