SX Aquarium Monitor! V1.0

Designed to grab the temperature and pH of an aquarium and send the data to a PC via serial port. The PC then inserts the data into a
database where the data can be graphed and viewed from the web. I would like to skip the serial step and have the SX directly insert data on my webserver. Listed below is the link to the code and the PCB schematic zoomed out to make it easier to view. All done for 1206 surface mount components. Eventually I will make the SX itself surface mount with connectors to program directly. More information on that will be available soon.

The Code in SXWiz Basic and ASM

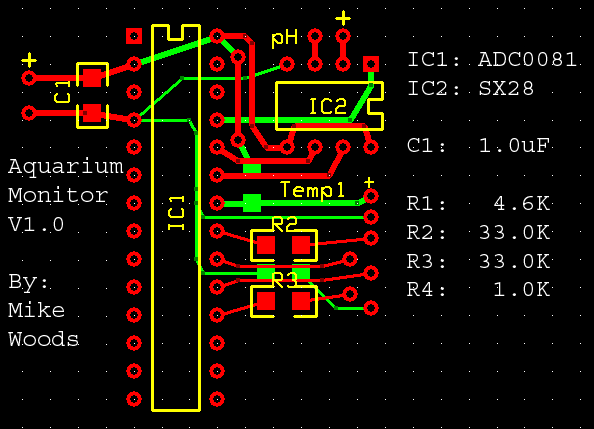

Aquarium Circuit



Have something to say about this project? ~NOSPAM~infoSTOPspam at TakeThisOuTbdm-inc.net Everything except spam stuff is welcome.
