Socket / Footprint / IC Package Types w/ Dimensions

PGA - Pin Grid Array

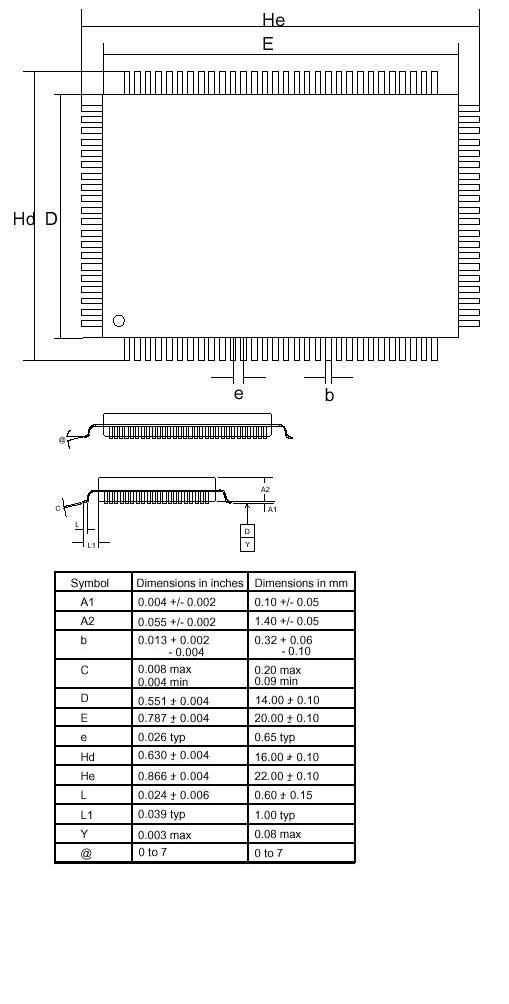

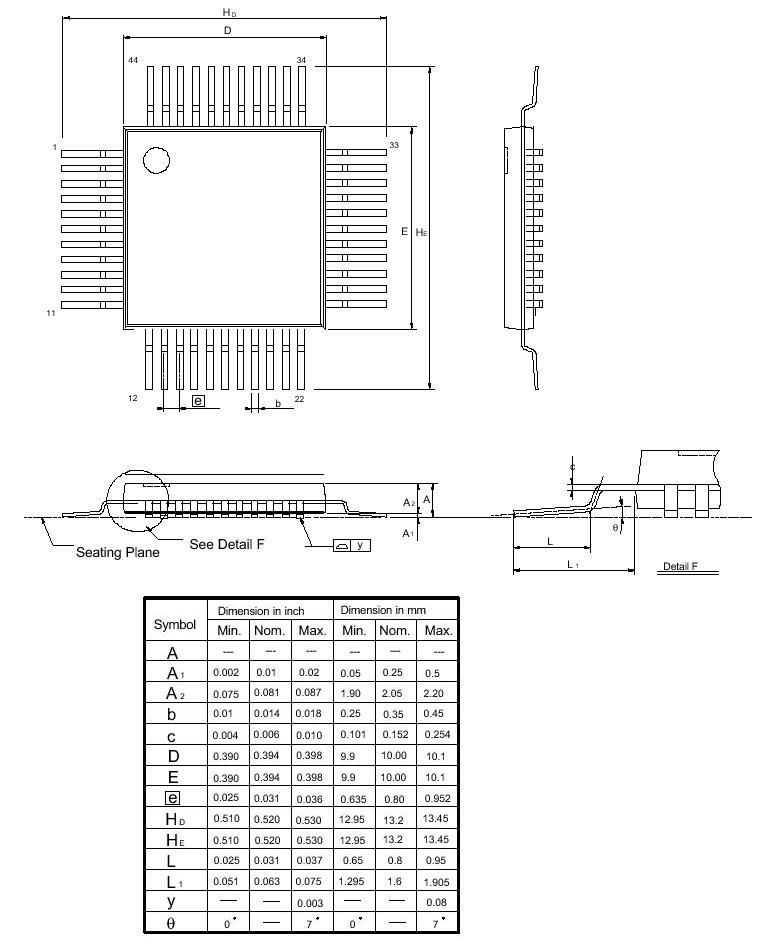

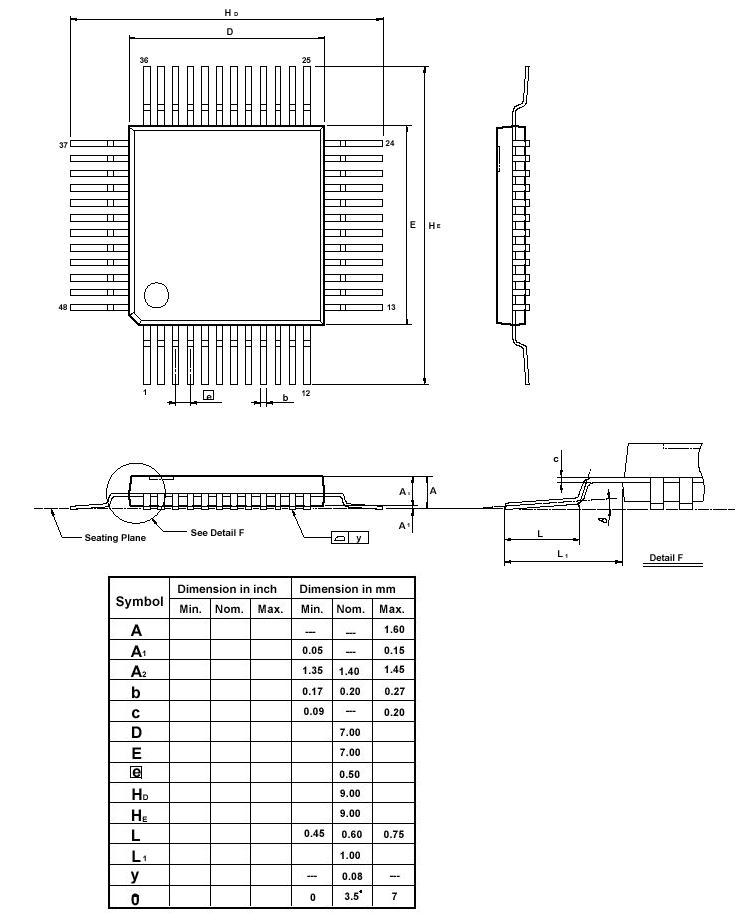

QFP - Quad Flat Pack.See: Footprint

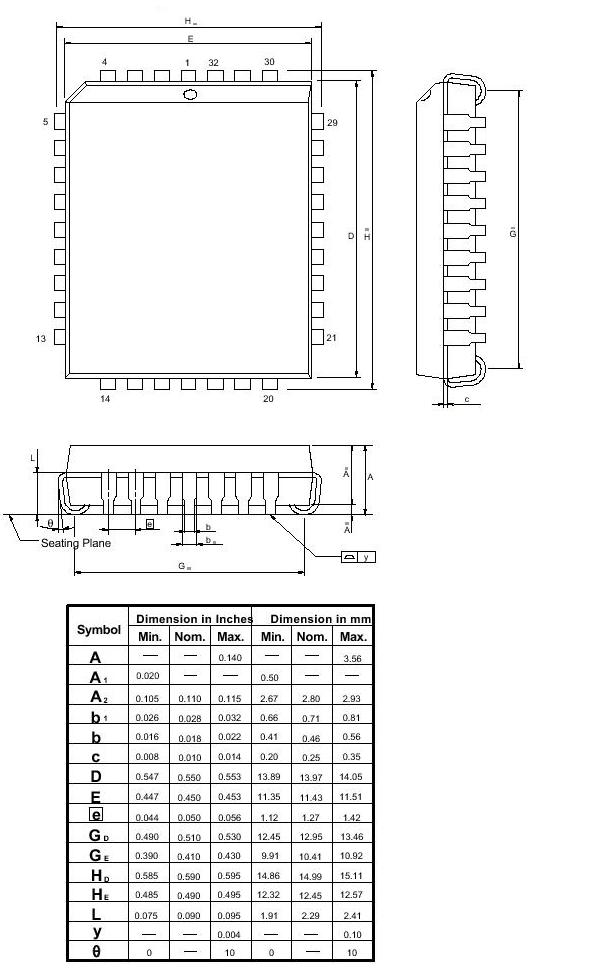

PLCC - Plastic Leaded Chip Carrier. See: Footprint

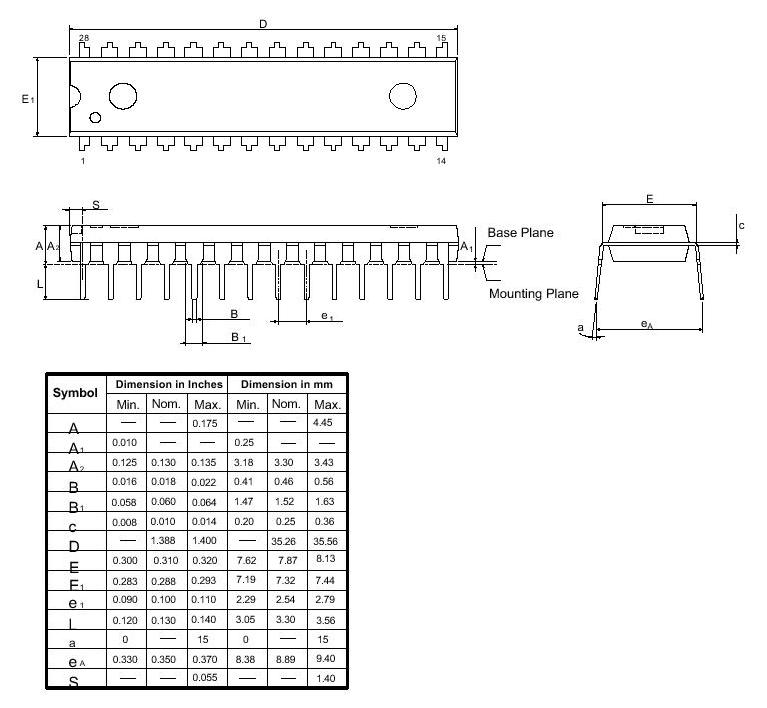

DIP - Dual Inline Package. See: Footprint

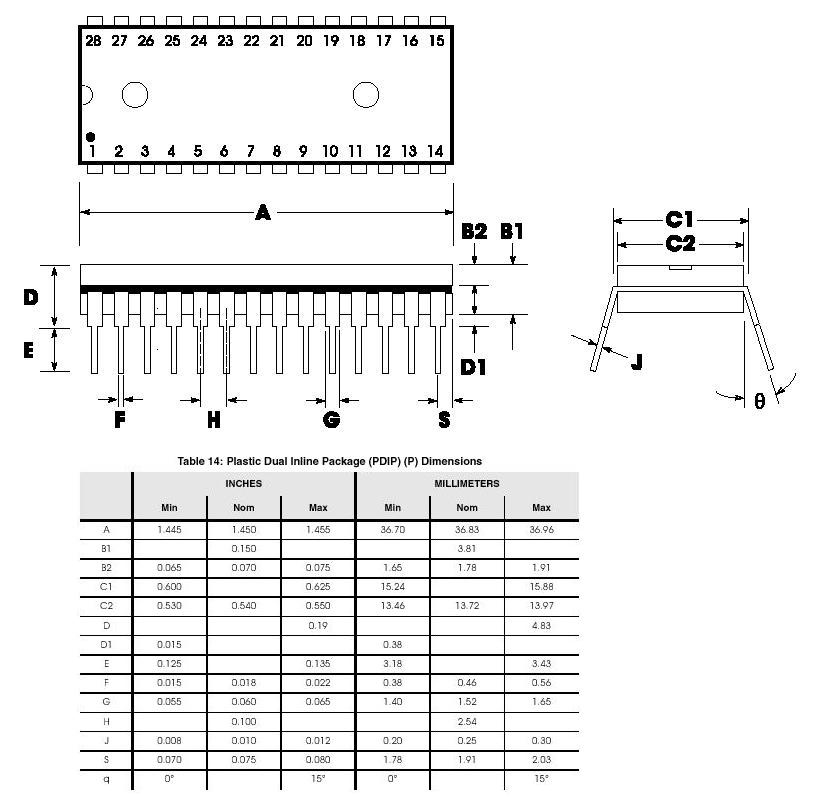

PDIP - Plastic Dual Inline Package. See: Footprint

CDIP - Ceramic Dual Inline Package

SDIP - Skinny DIP (300 mil body) See: Footprint

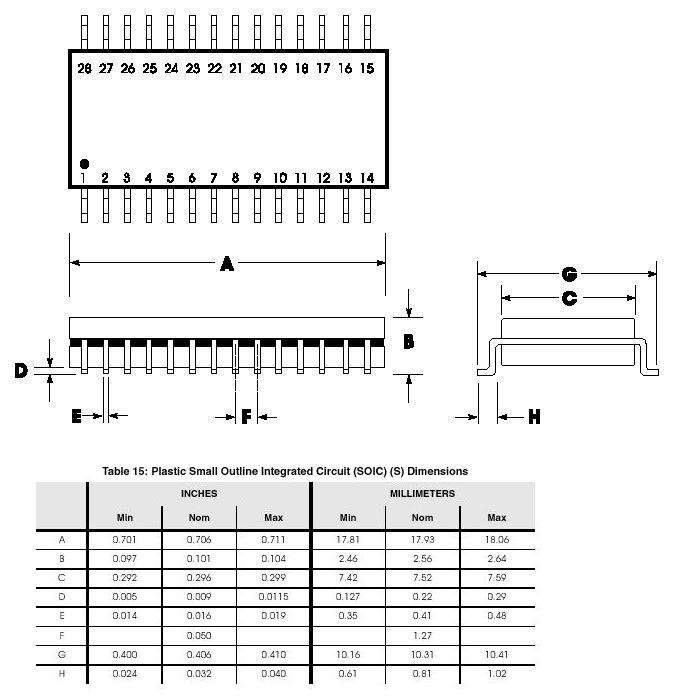

SOIC - Small Outline IC. See: Footprint

BGA - Ball Grid Array.

SOJ - Small Outline. See: Footprint

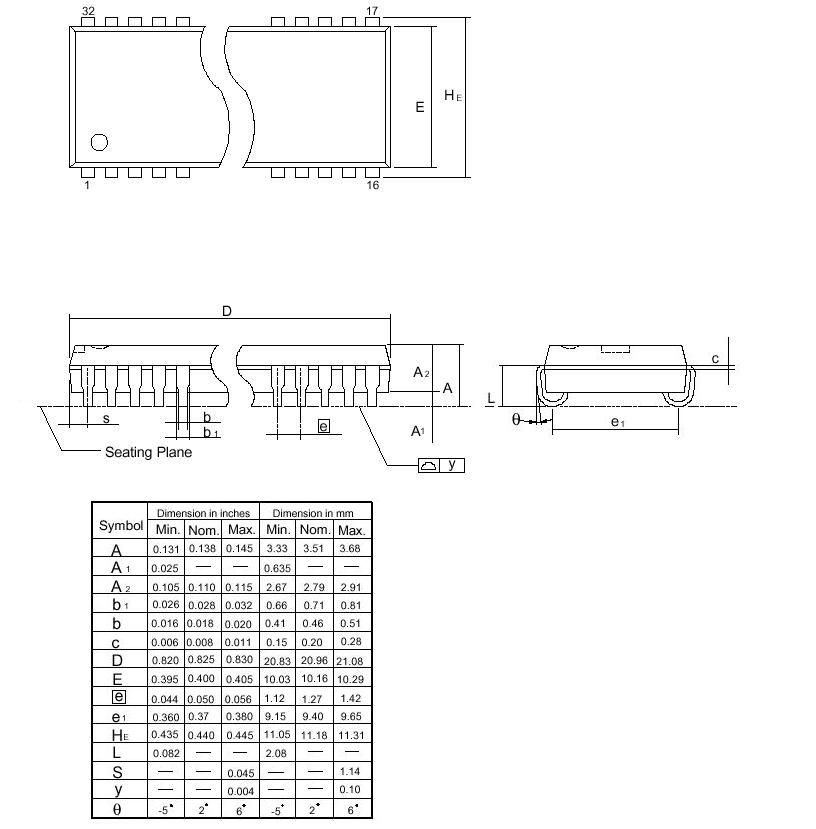

WSOJ -  400mil Small Outline. See: Footprint

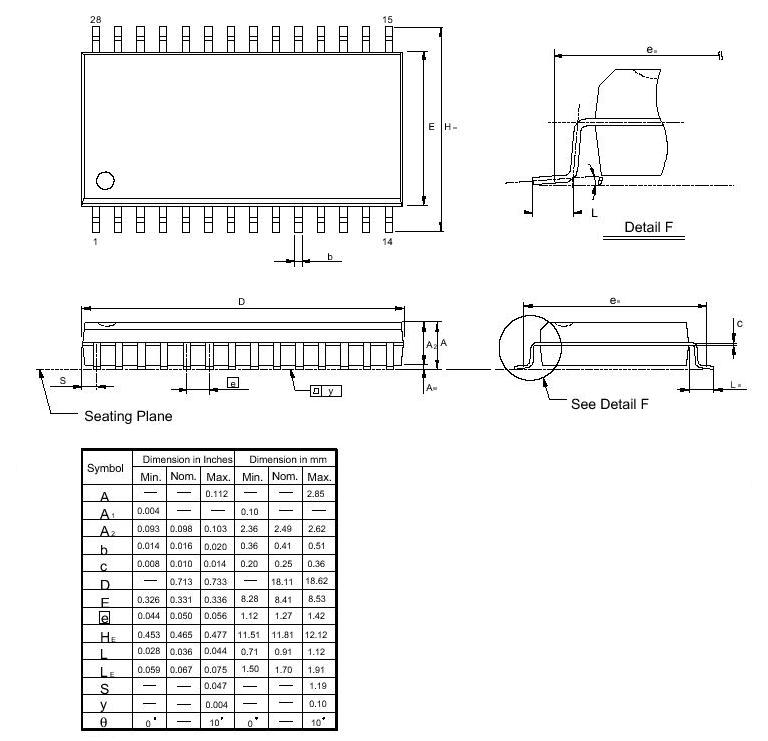

SOP - Small Outline. See: Footprint

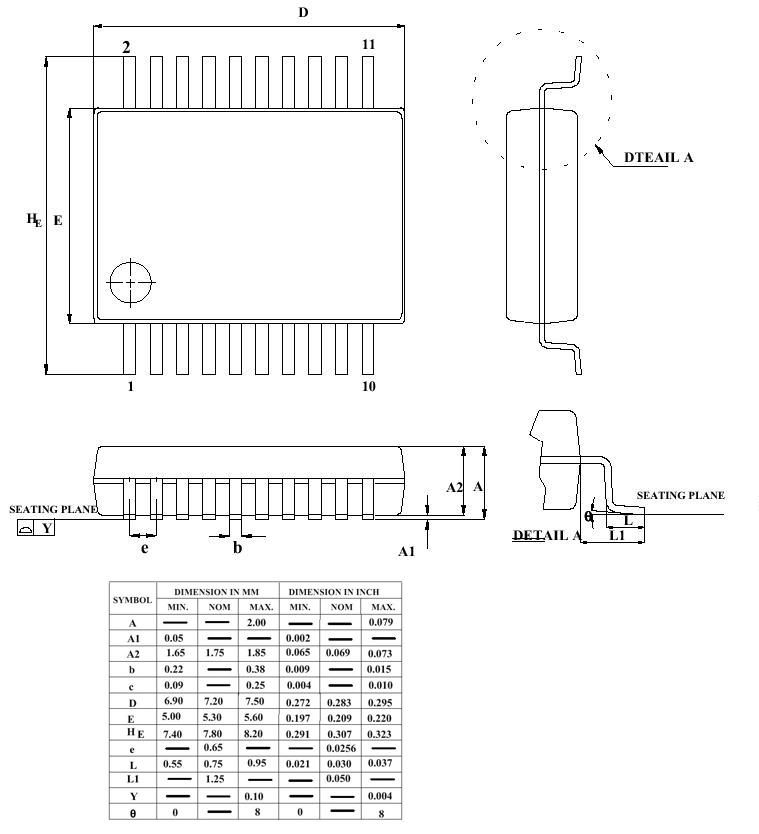

SSOP - Shrink Small Outline. See: Footprint

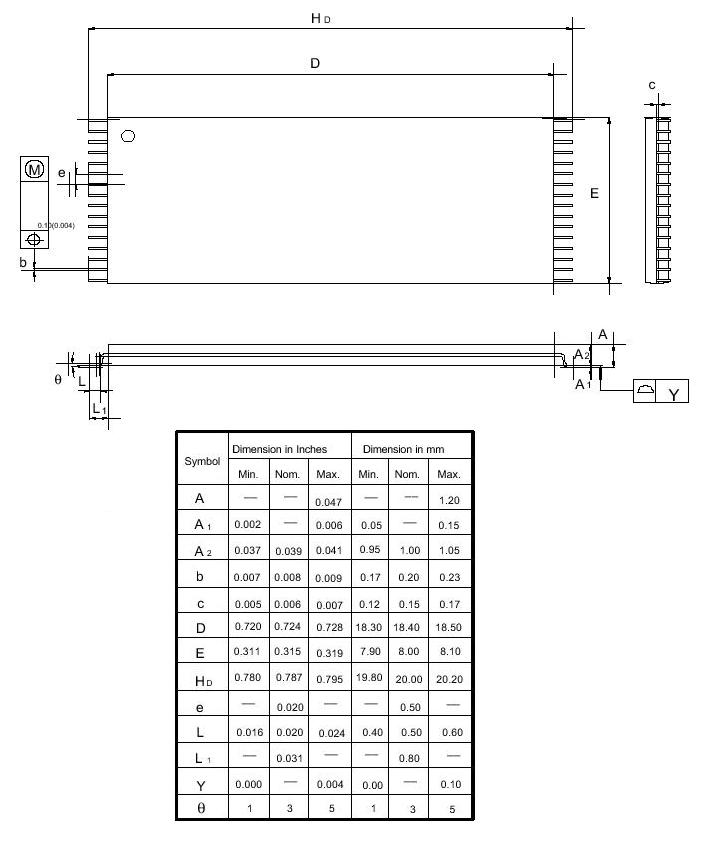

TSOP. Thin Small Outline Package. See: Footprint

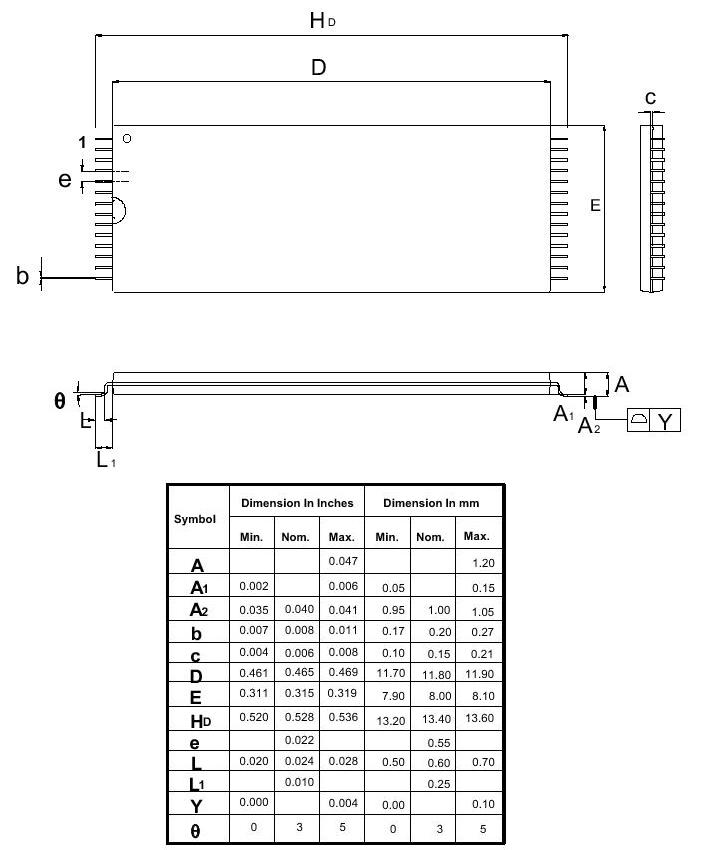

STSOP. Small TSOP See: Footprint
