Products > Kits > LCD Front Panel:2x16, HD44780, 4buttons, 3LEDs

2x16 LCD w/HD44780 controller, 4 push buttons, 3 LEDs and a 2x12 pin header.

  • 16 x 2 char LCD (STN). Non backlit. Light grey background and dark blue characters. Single character size aprox 0.2 x 0.1 inch (5 x 3 mm)
  • Standard Hitachi HD44780 controller, (actual Hitachi, not a clone) Compatible with most LCD microcontroller code.
  • 4 Push Buttons: SPST high quality with gold plated contacts.
  • 3 LEDs for use as indicators.
  • Contrast adjustment pot.
  • One common 24-pin connector (also gold plated pins).
  • 4 layer PCB with grounded outer layers: Excellent EMC and ESD protection


Compatibility: Pin order does NOT match Shift1.
level: easy.

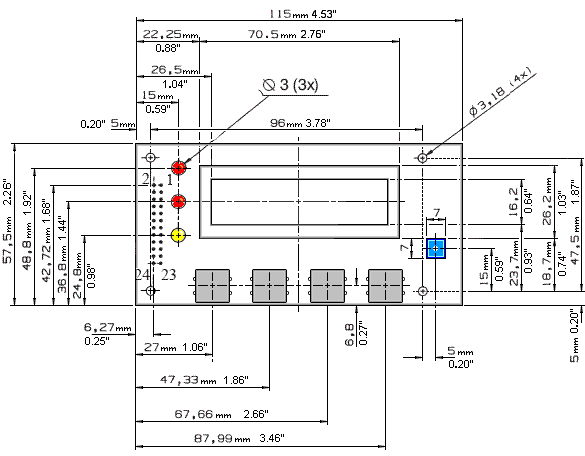

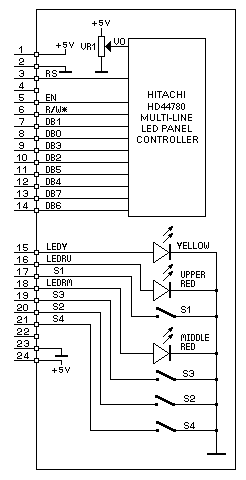

Picture of item #416028LCD Front Panel:
2x16, HD44780, 4buttons, 3LEDs:
 $8.95 NONSTOCKED No longer available
